LW D6580

Home>Products>IVD>Hematology Analyzer

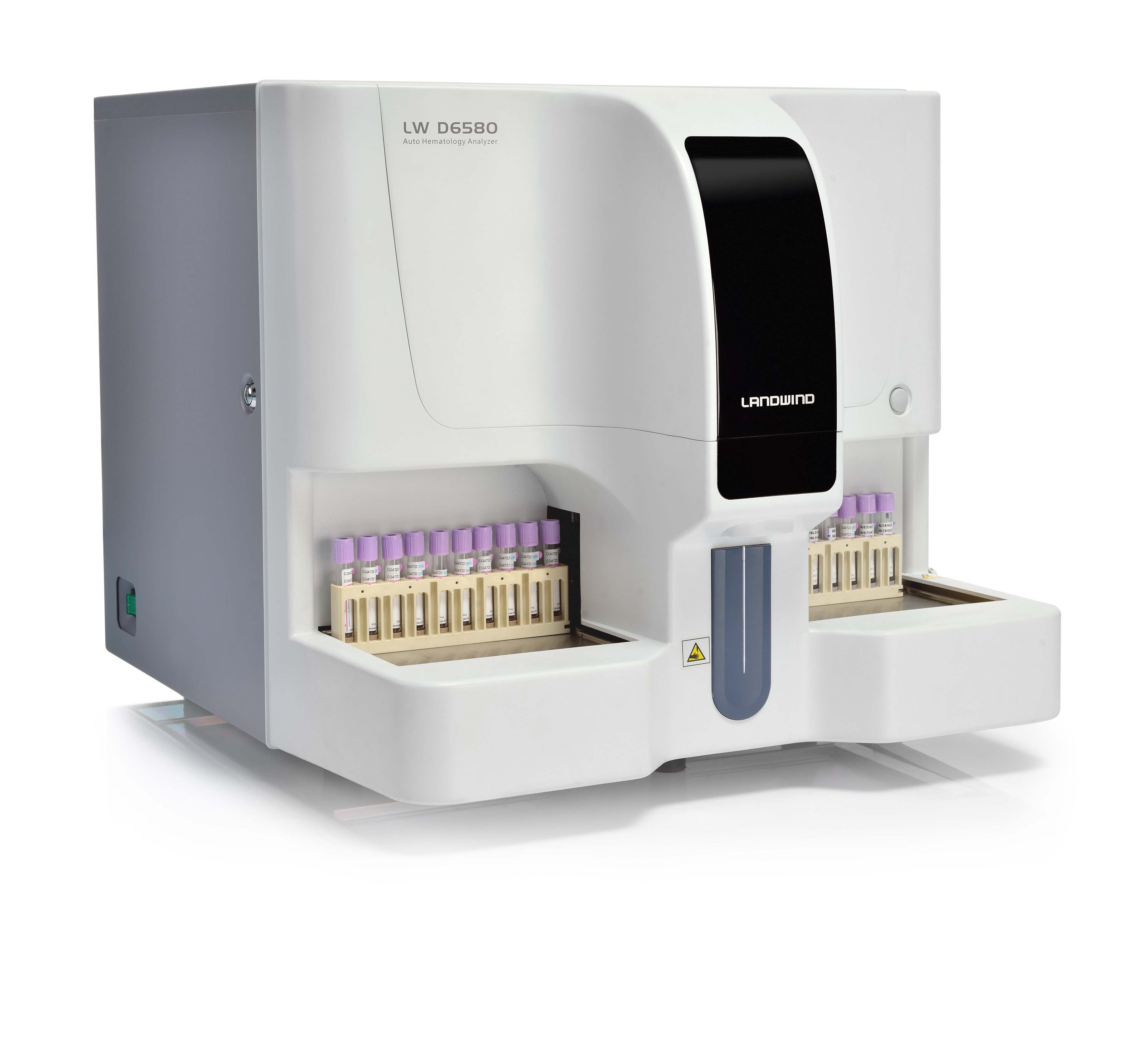

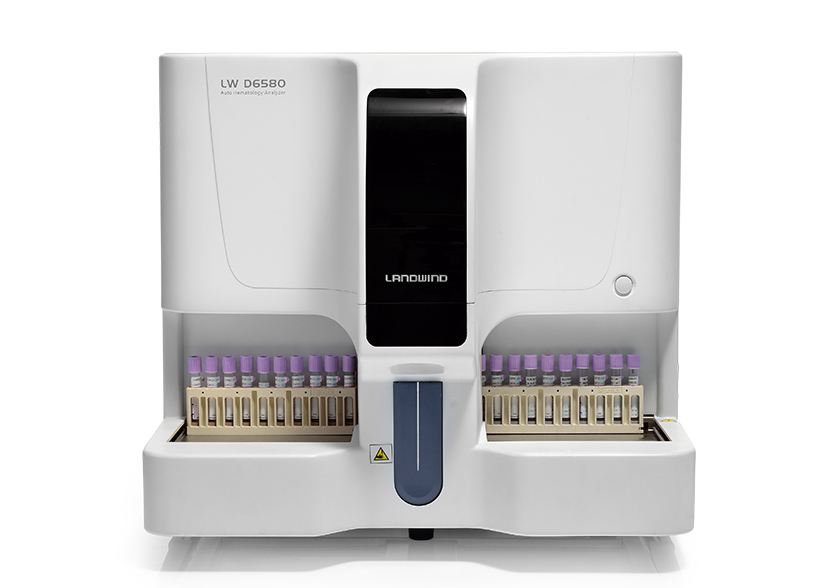

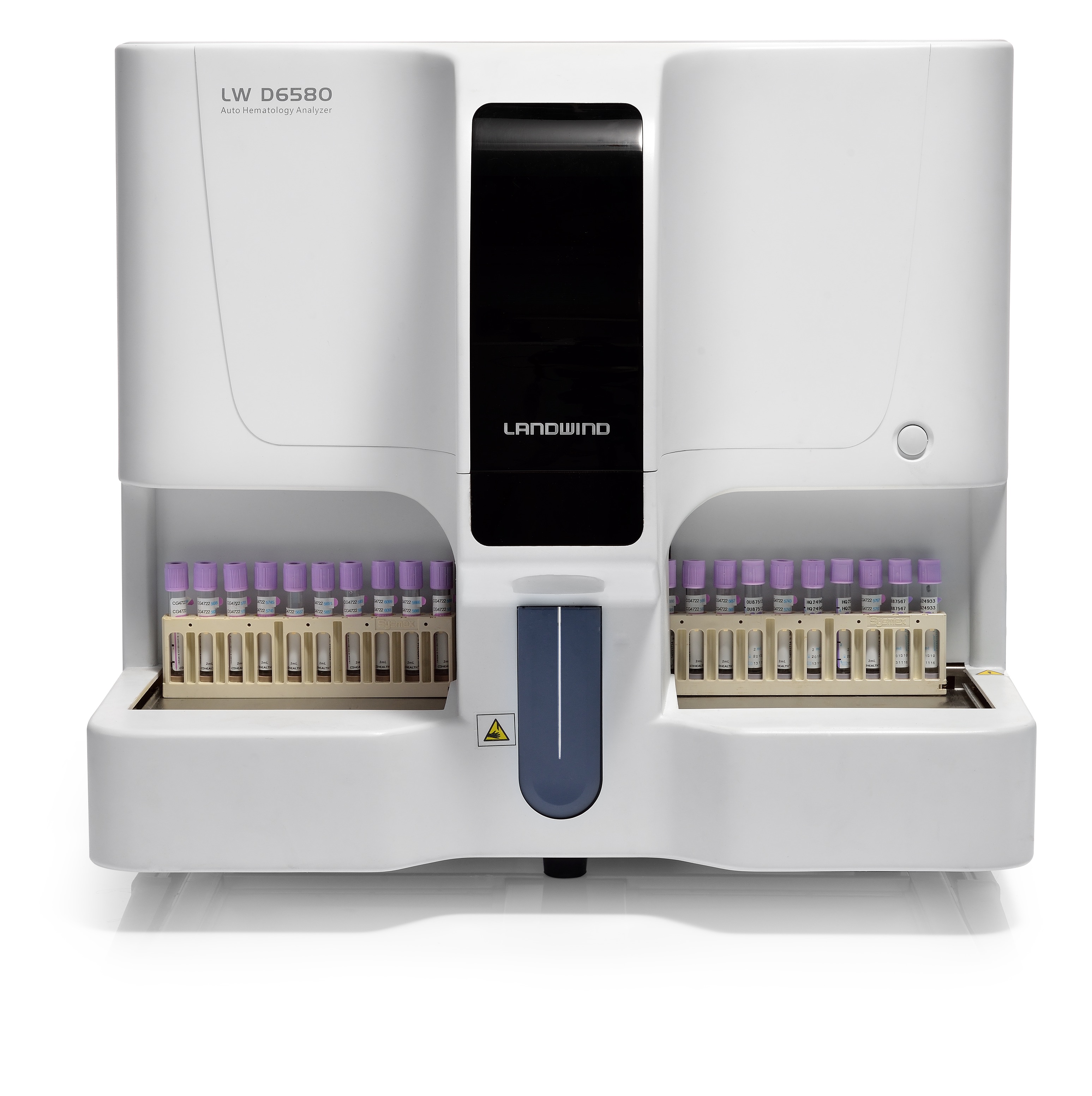

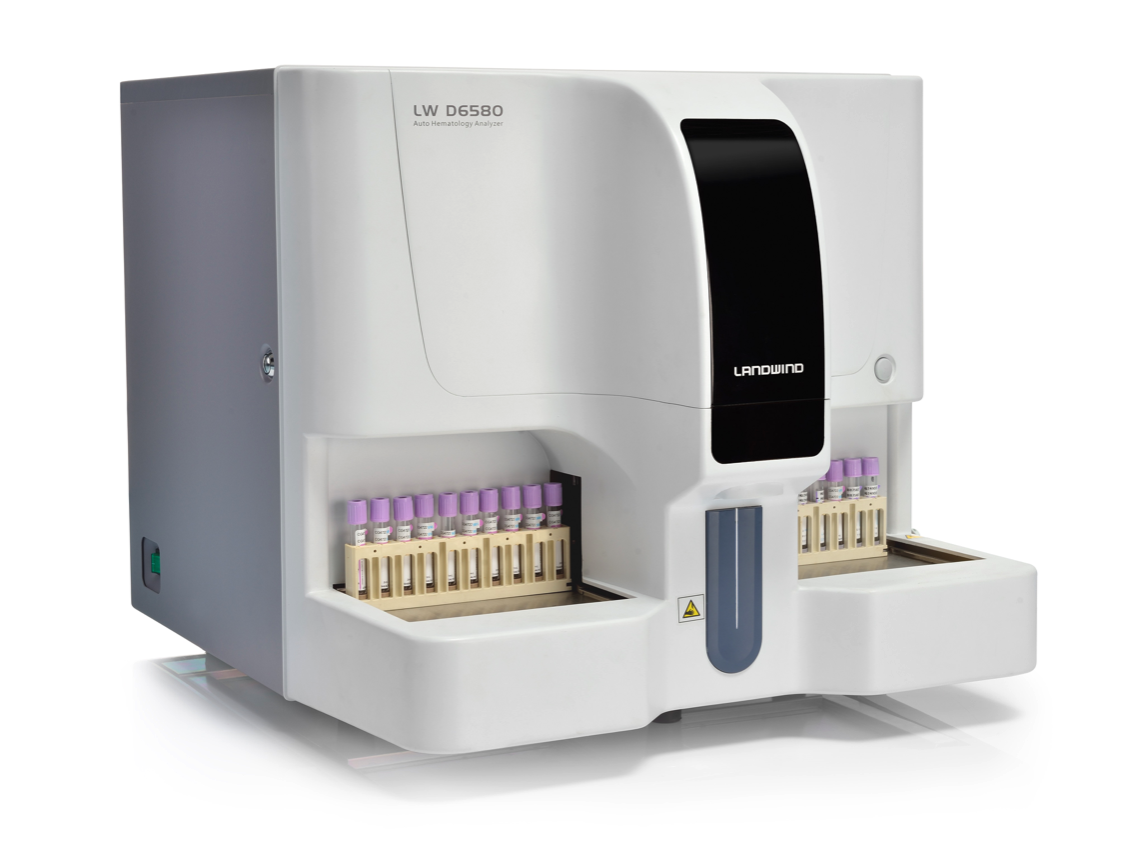

LW D6580 is the new generation 5-diff, hematology analyzer with autoloader. It is a product encompassing the latest technology in optics, automation, mechanics and biology.
  • Features
  • Parameters
  • Technology

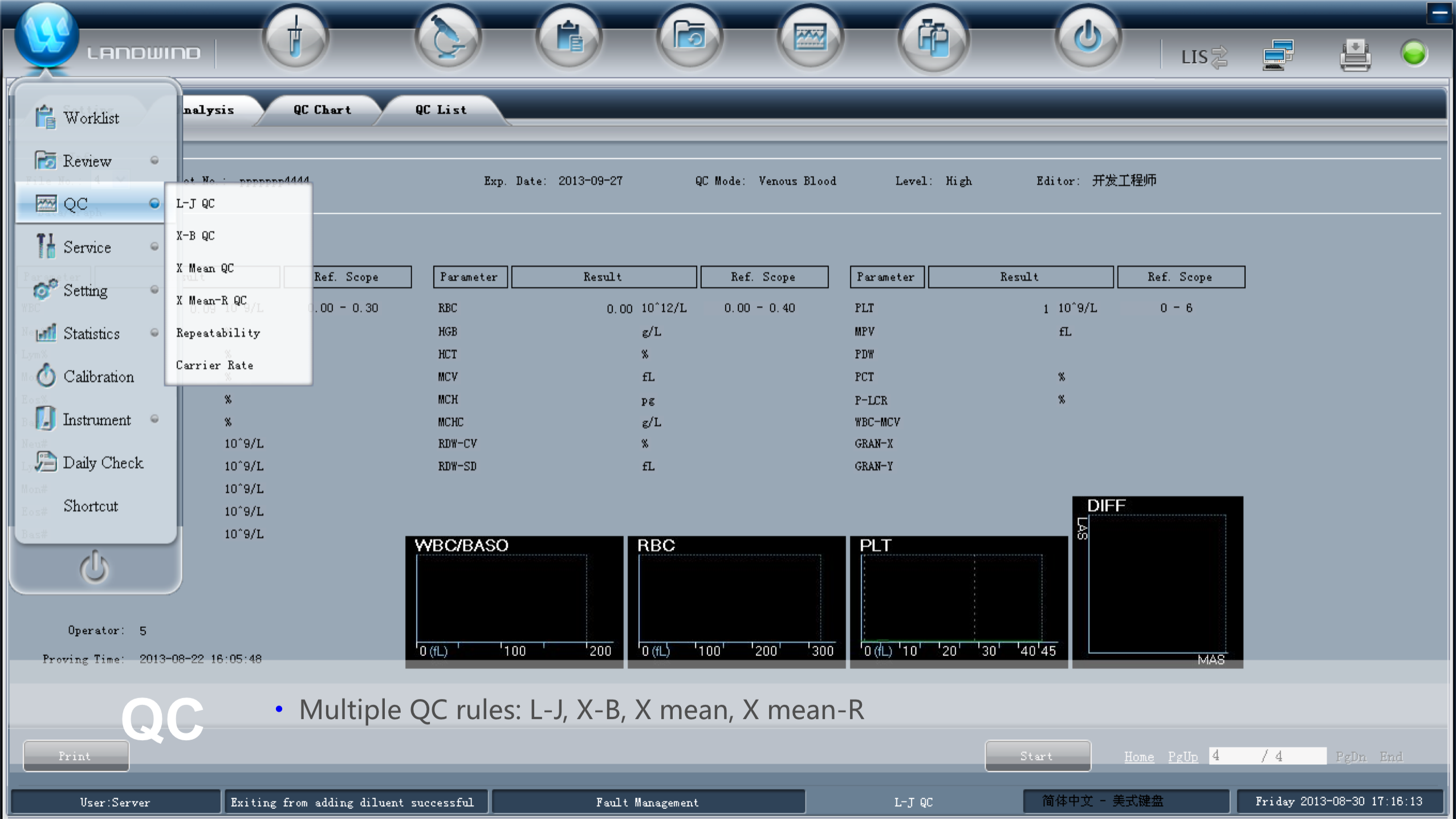

  • Software&Functions
  • Clinical Test

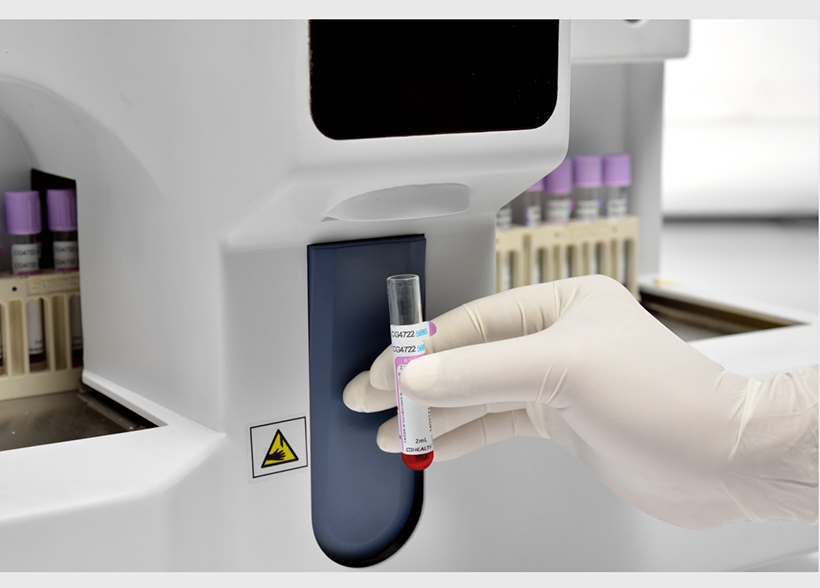

•  Open mode: 60 samples/hour

•  Autoloader mode: 80 samples/hour

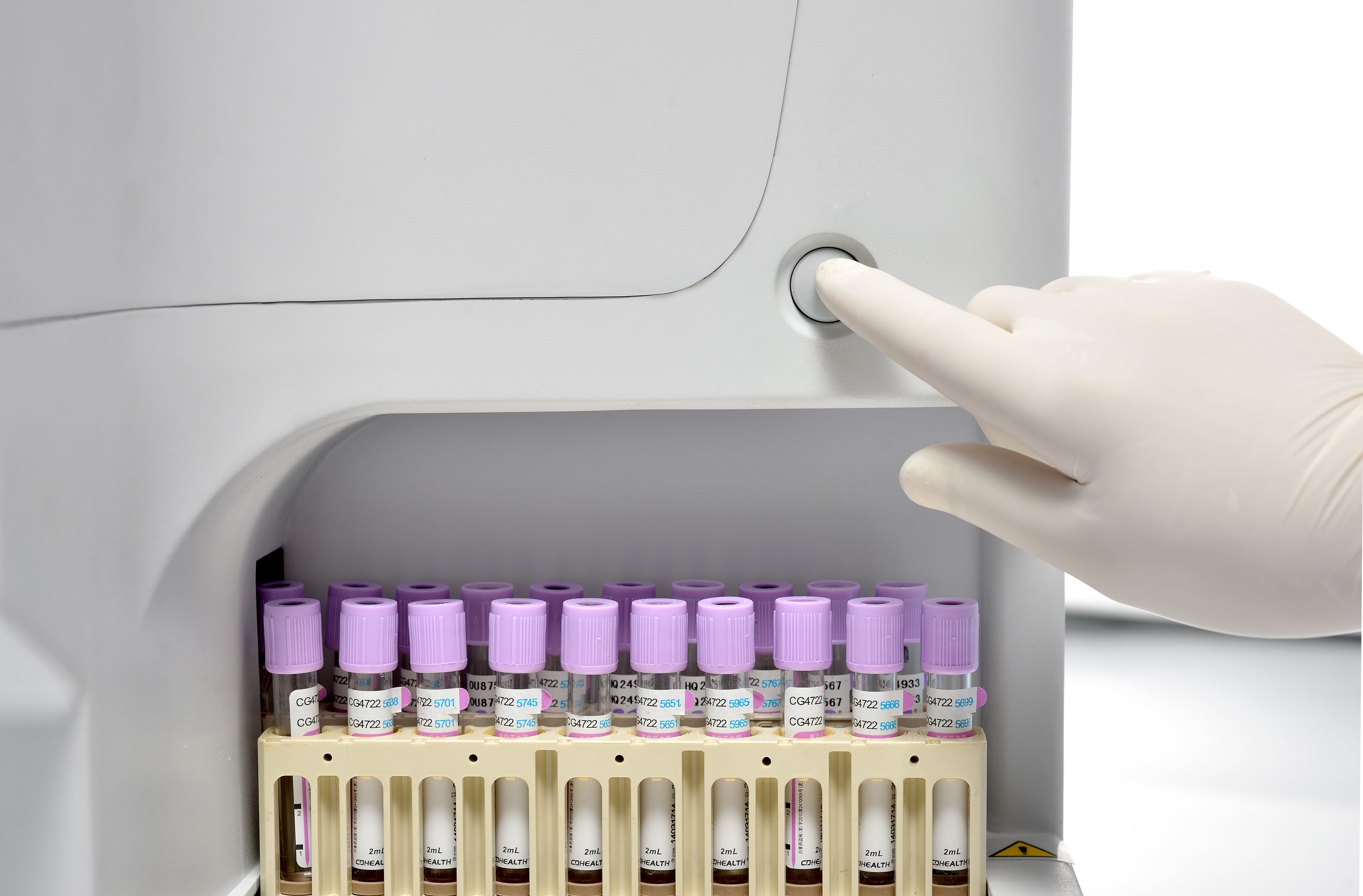

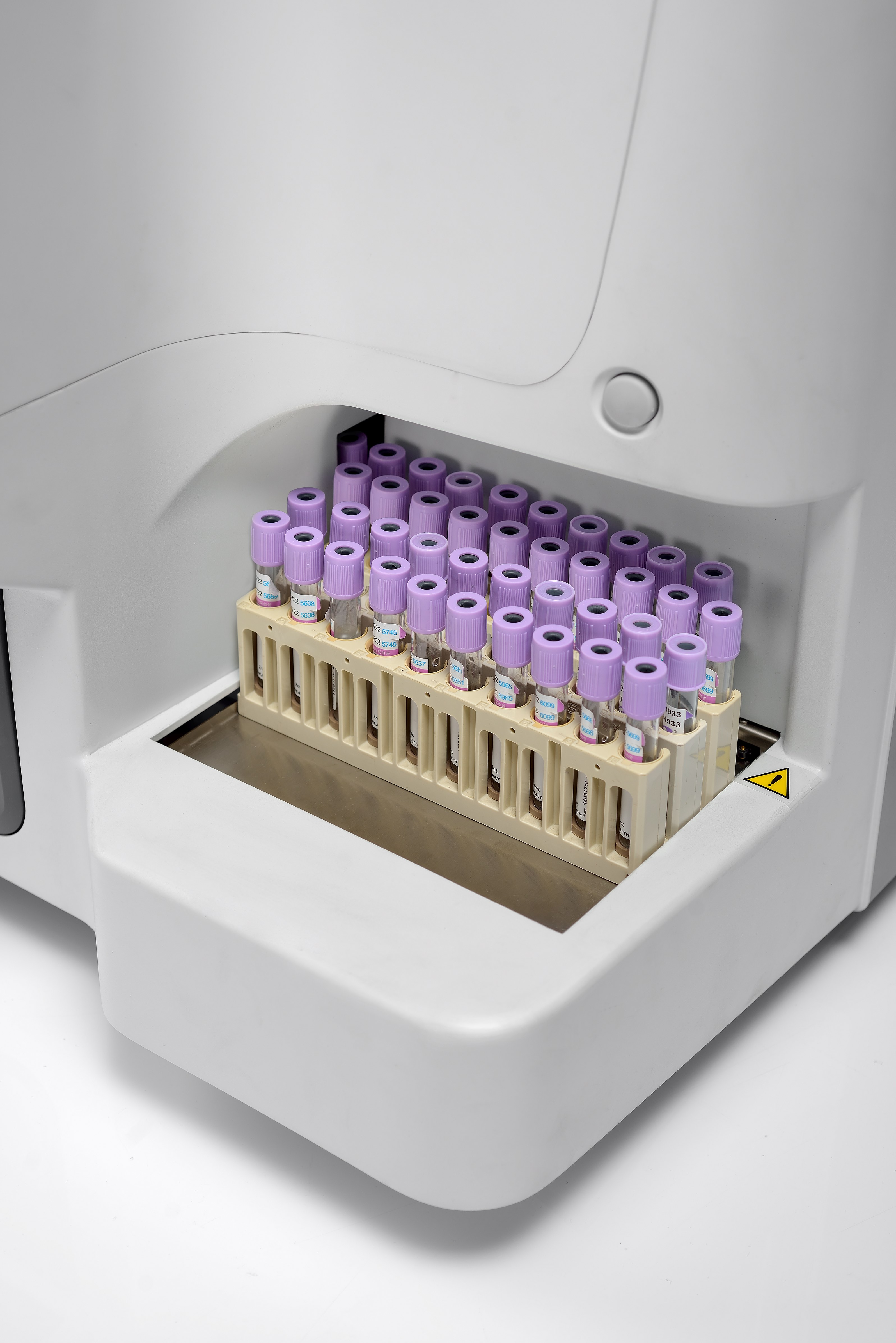

•  60-tubes autoloader with random access

•  5-partdifferentiation,28parameters,3histogramsand1scattergram

•  Semi-conductor laser scatter combined with chemical dye method and advanced flow cytometry

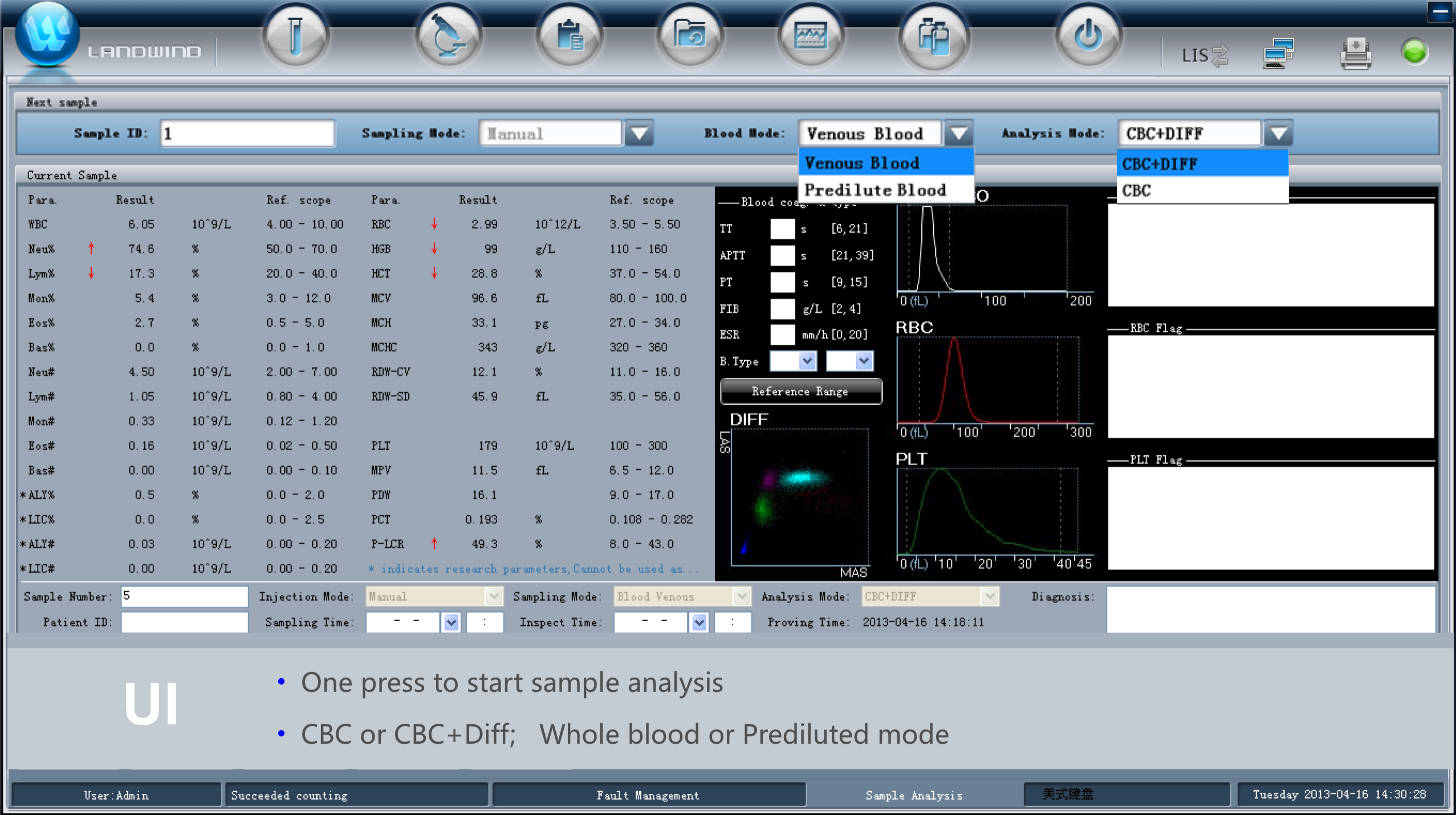

•  2countingmodes:wholebloodandprediluted blood.

•  16µLbloodsamplingforCBC+DIFFtestand7uLforCBCtest

•  24 hours sample stability for CBC, 12 hour sample stability for CBC+DIFF

•  Only 4 reagents for measurement, control and calibrator are supplied

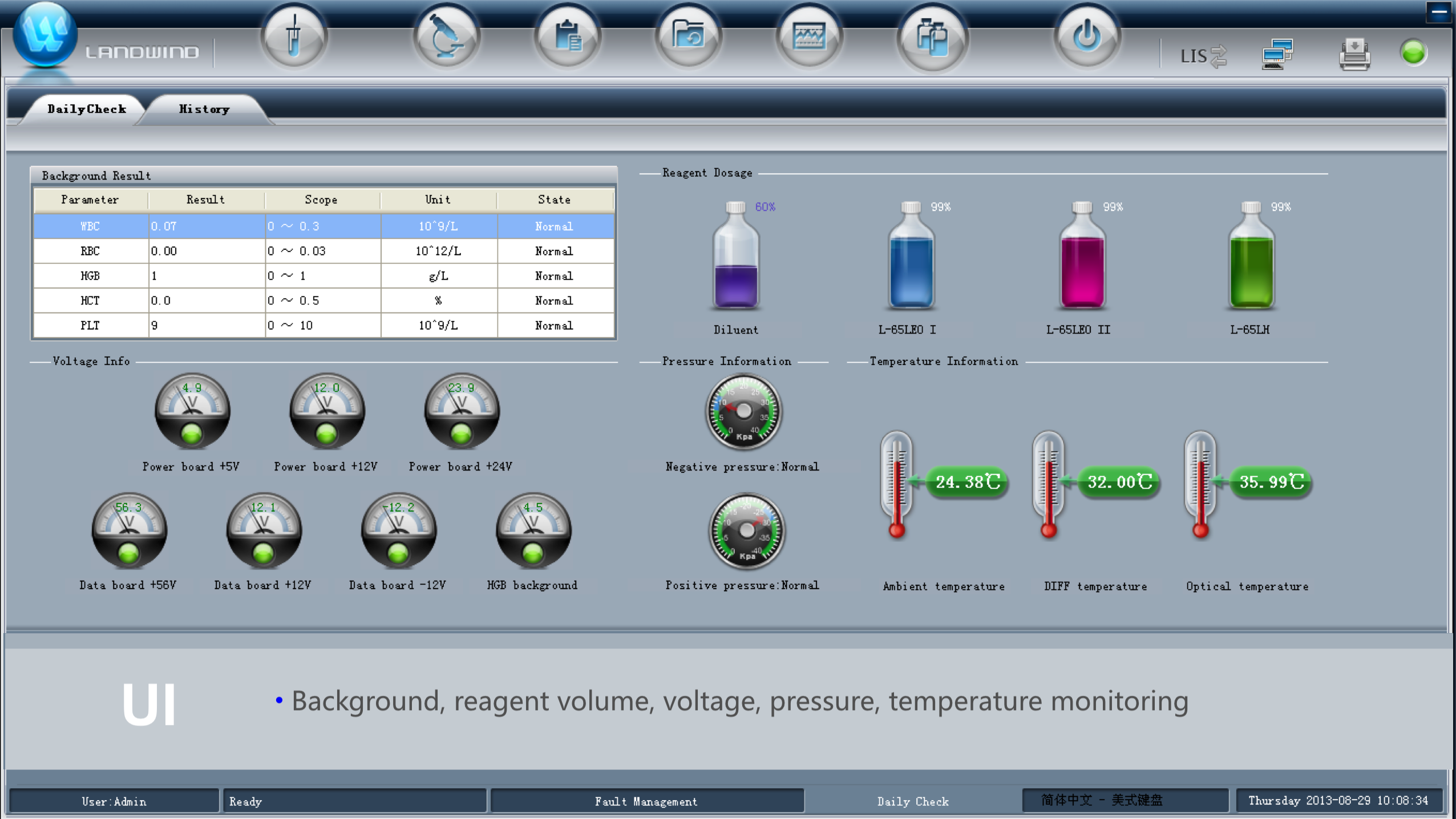

•  Reagent inventory real-time monoitoring

•  Support unidirectional LIS

WBC, NEU#, Lymph#, Mon#, Eos#, Bas#, NEU%, Lymph%, Mon%, Eos%, Bas%, RBC, HGB，HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV,  PDW, PCT, P-LCR


Research Parameters:

ALY#, ALY%, LIC#, LIC%

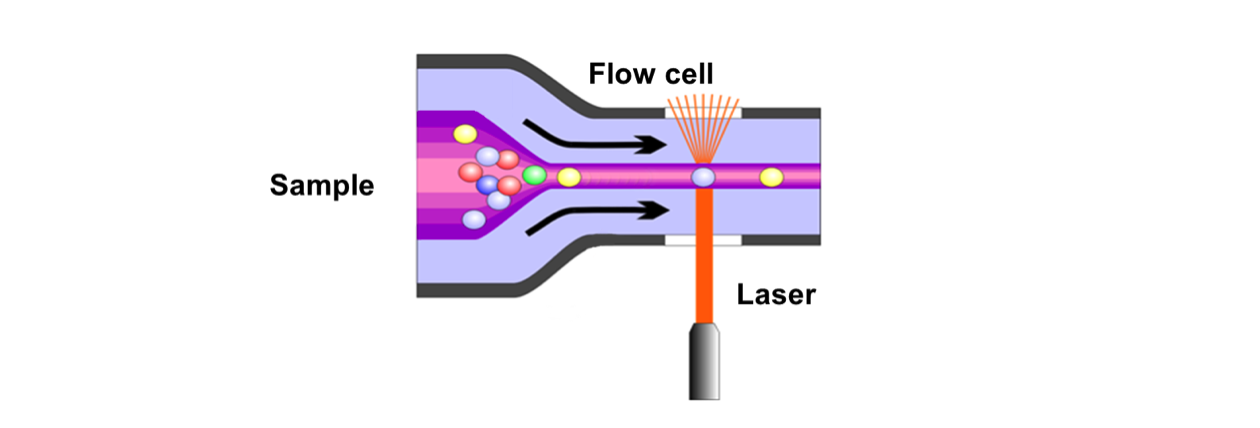

  • The cell stream is coated by the sheath flow
  • WBC passing through the flowcell one by one

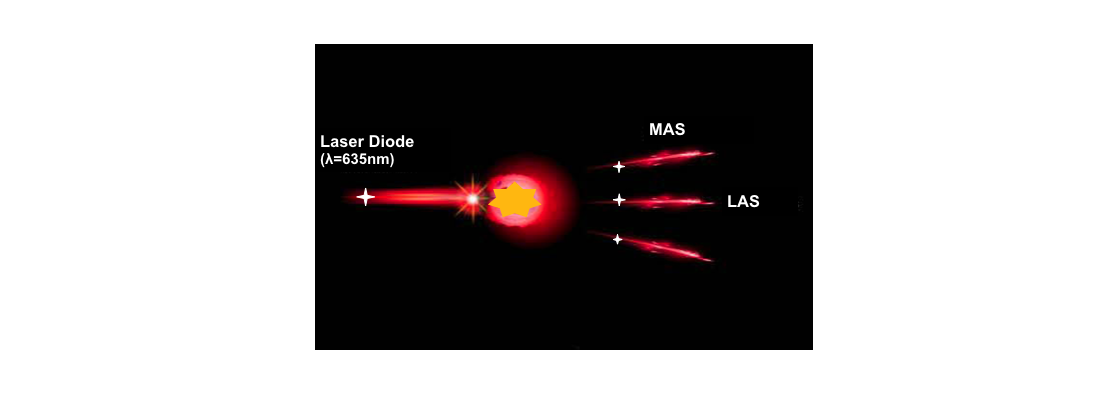

  • Laser detects for WBC differential



  • Middle angle scattering represents inner structure and granules of cell
  • Low angle scattering represents cell size



  • Two categories of lyse dissolve the RBC and dye the WBC
  • WBC can be better differentiated under laser scattering

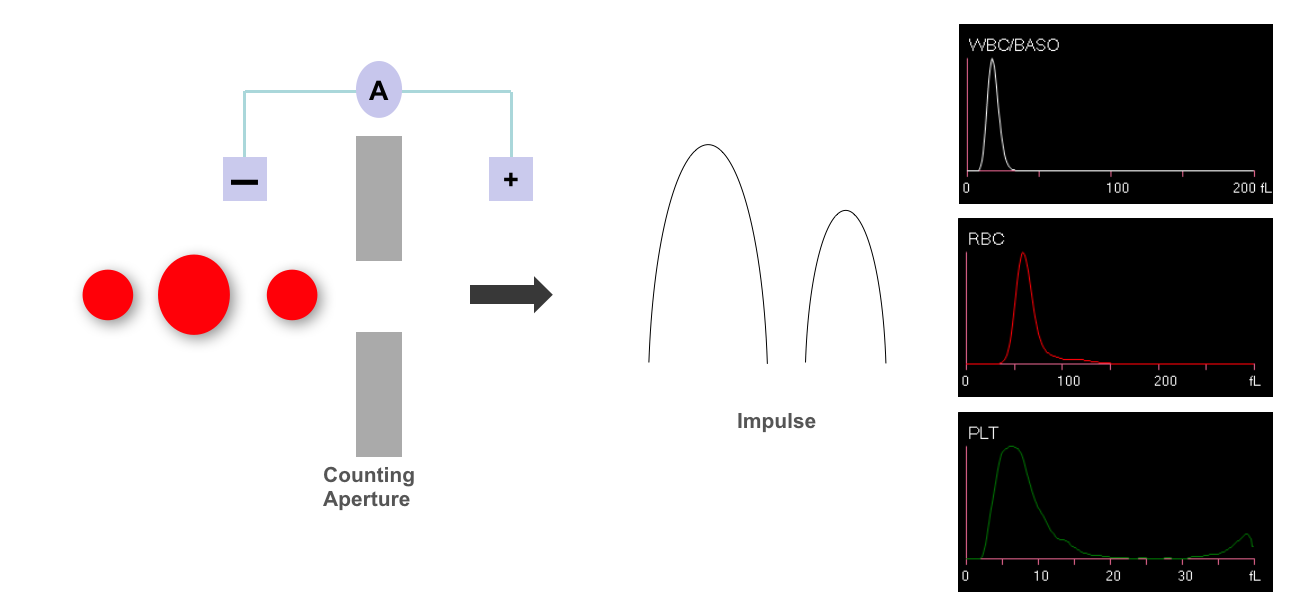

  • 2 counting chambers: one for WBC, the other for RBC/PLT

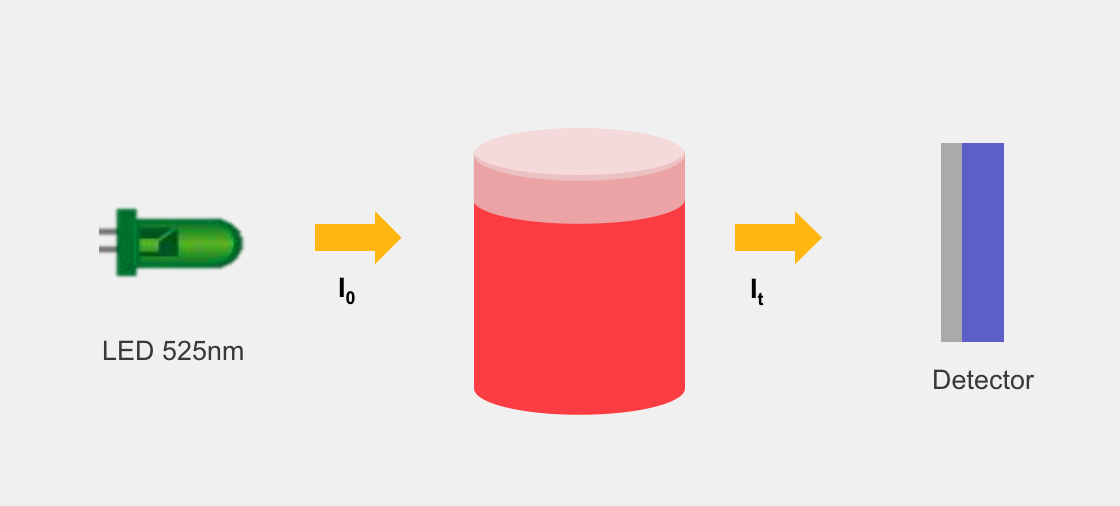

  • HGB concentration is calculated by colorimetric method
  • Cyanide free, no biohazard to human and environment
