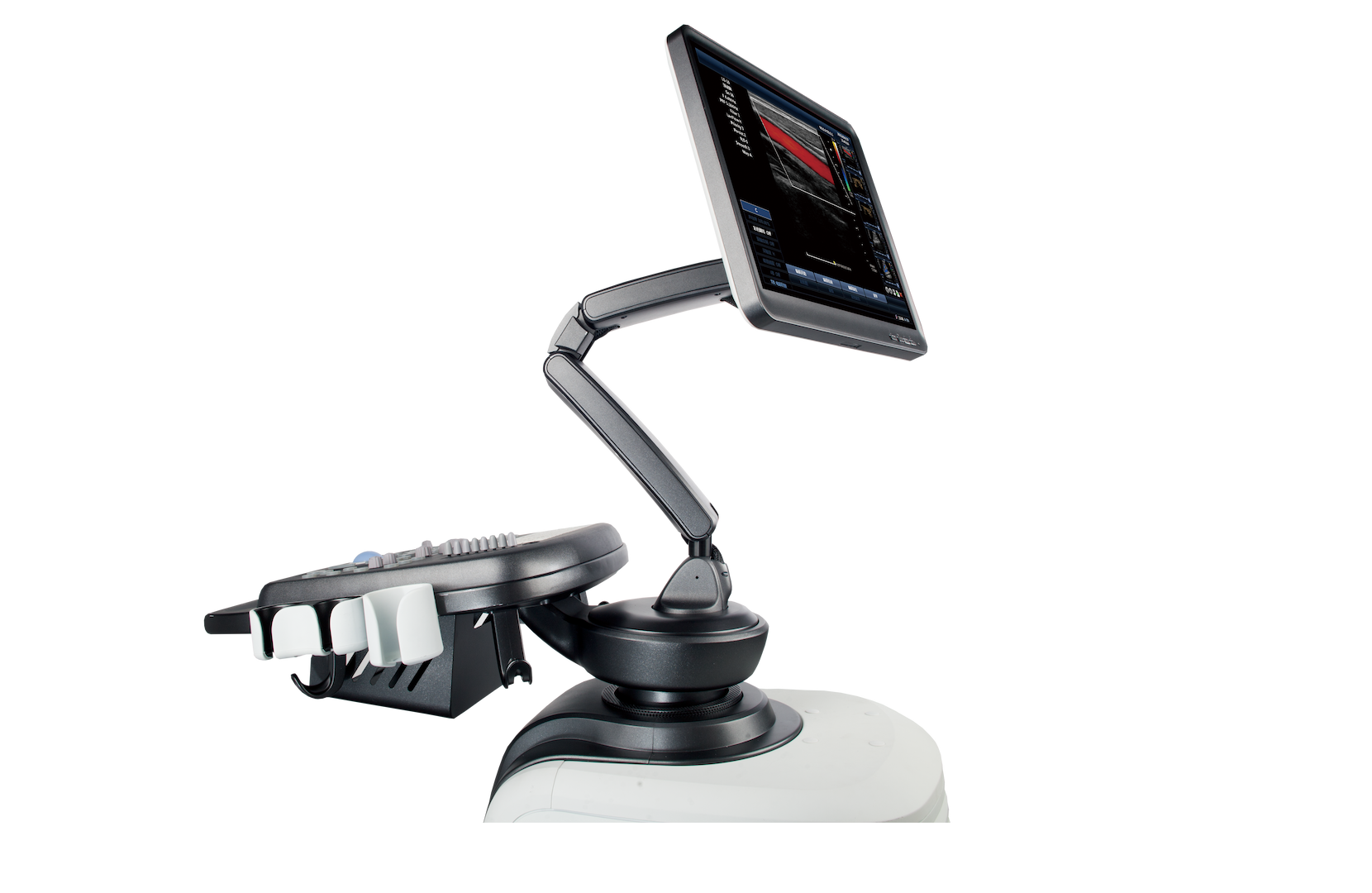

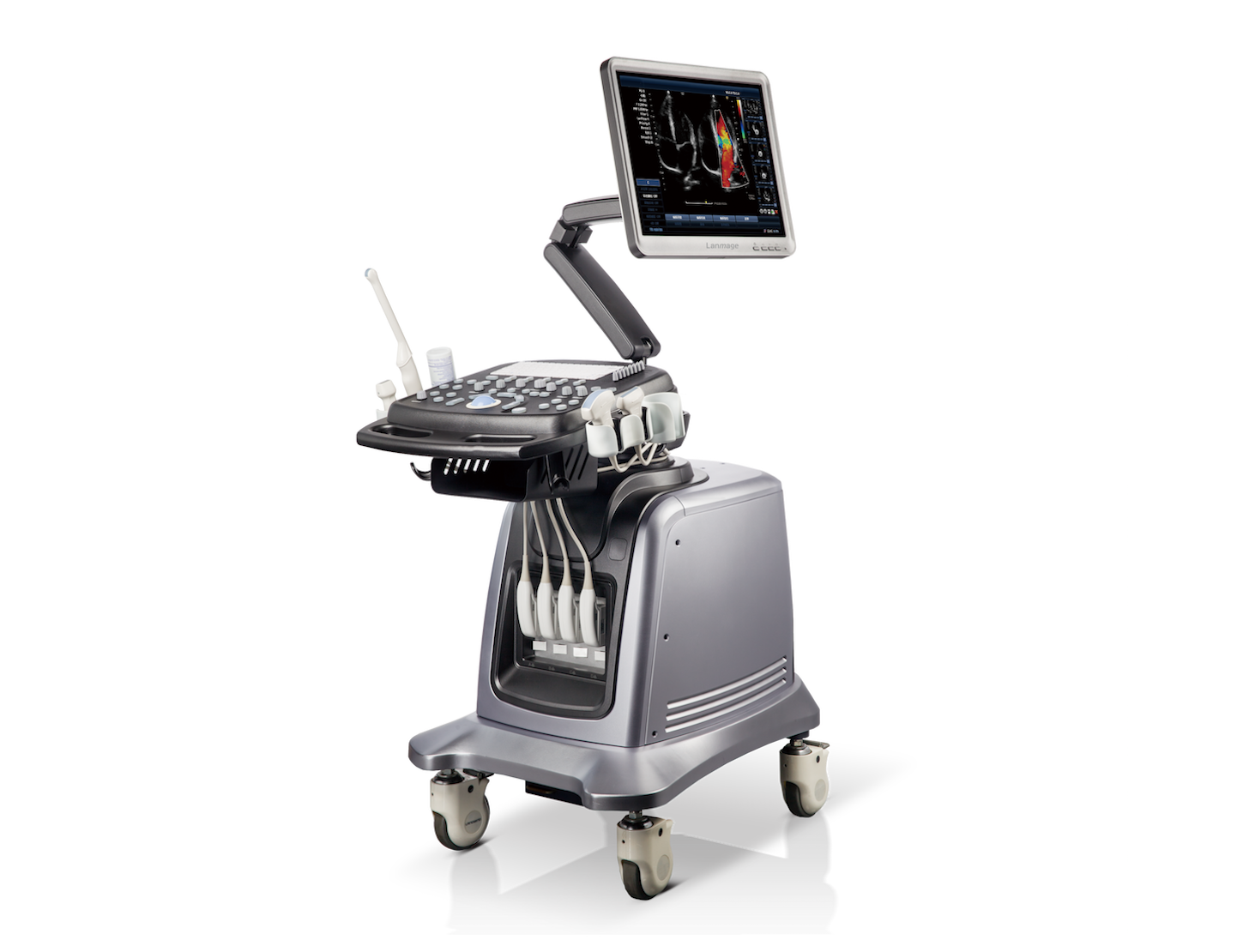

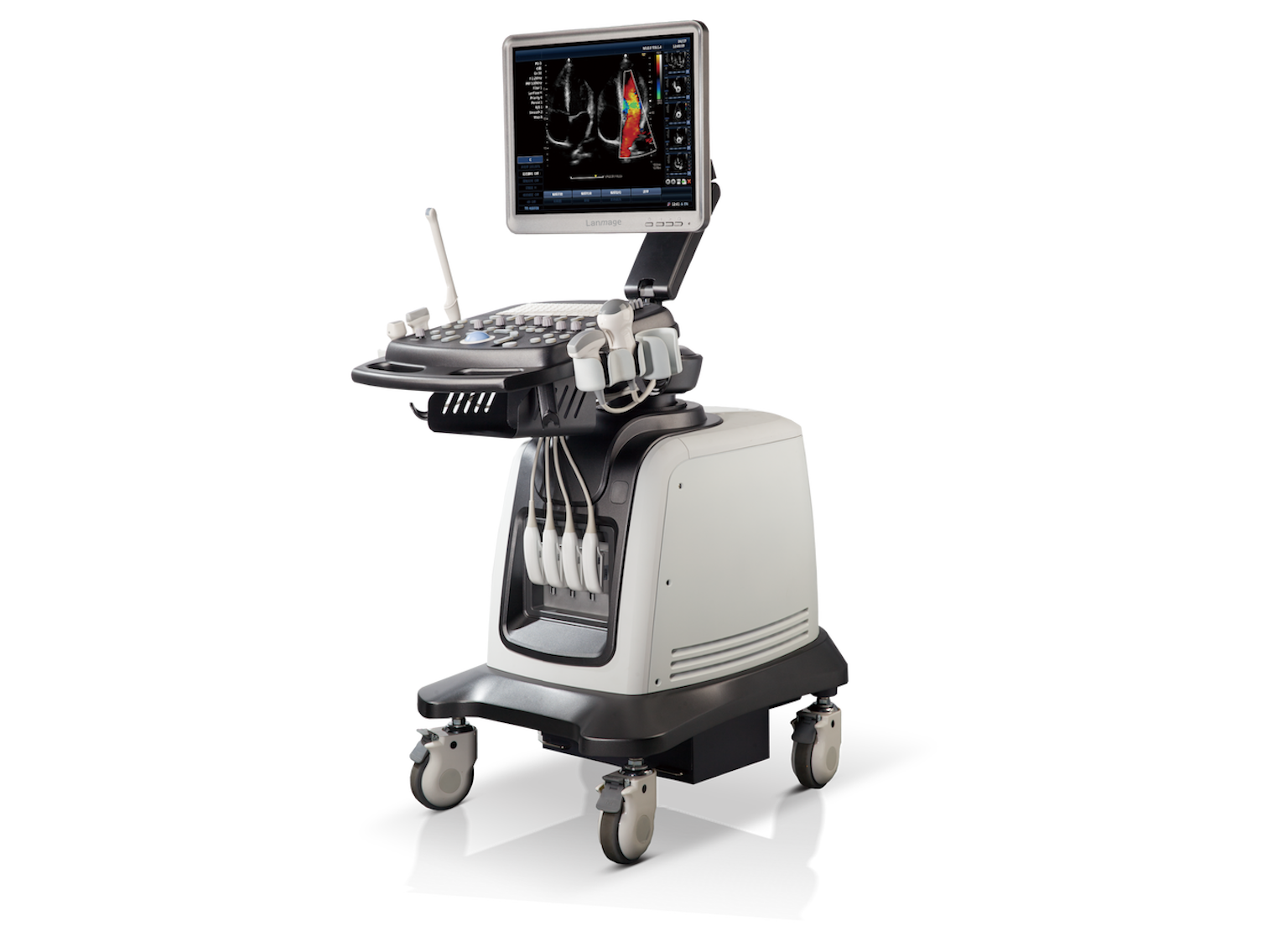

Mirror5 Exp

Digital Color Doppler Diagnostic Ultrasound System
Mirror5 Exp provides you easy, simple and fast exams with expert measurement tools, enabling doctors to save their own preferred parameters and settings and thus enhancesefficiency.Based on advanced processing platform, Mirror5 Exp offers high volume rates in real-time scanning for excellent image quality, unprecedentedly optimized user’s experience.
  • Features

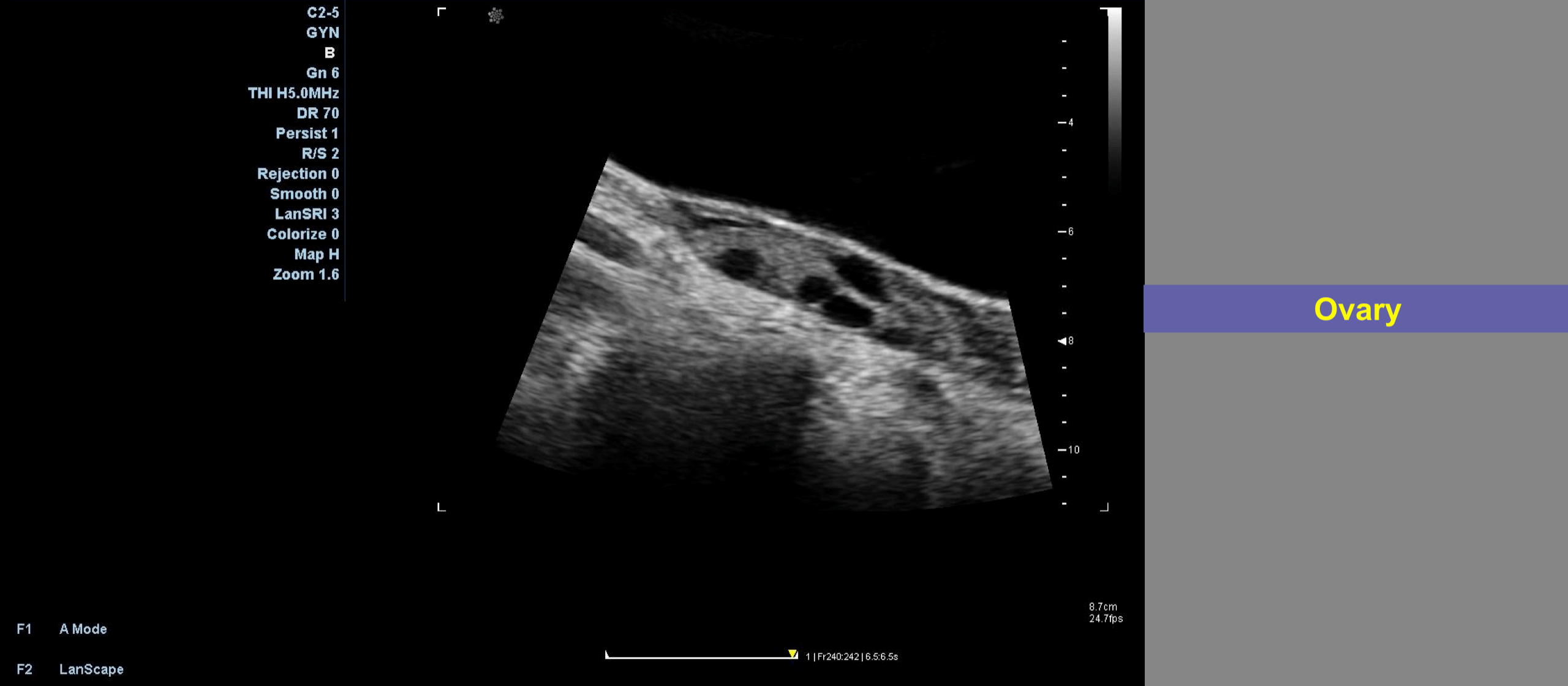

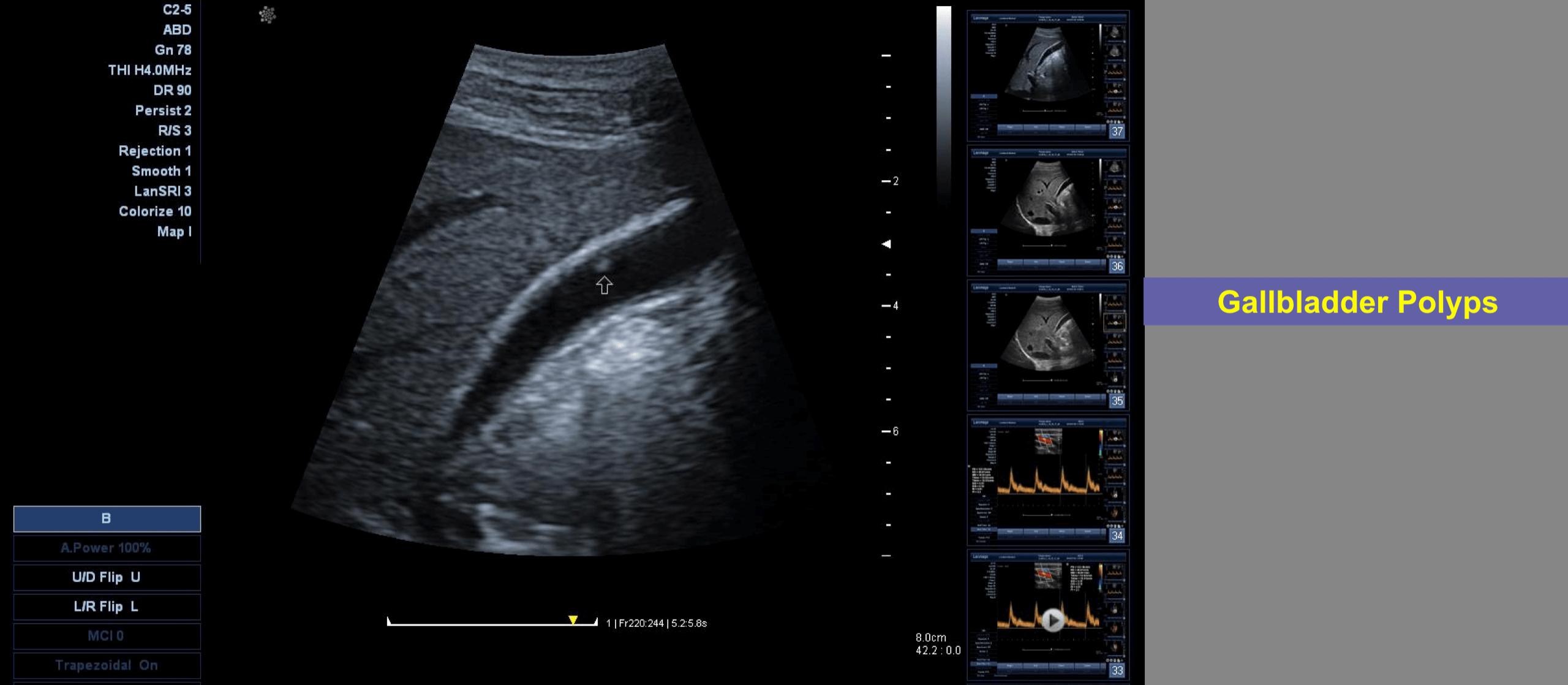

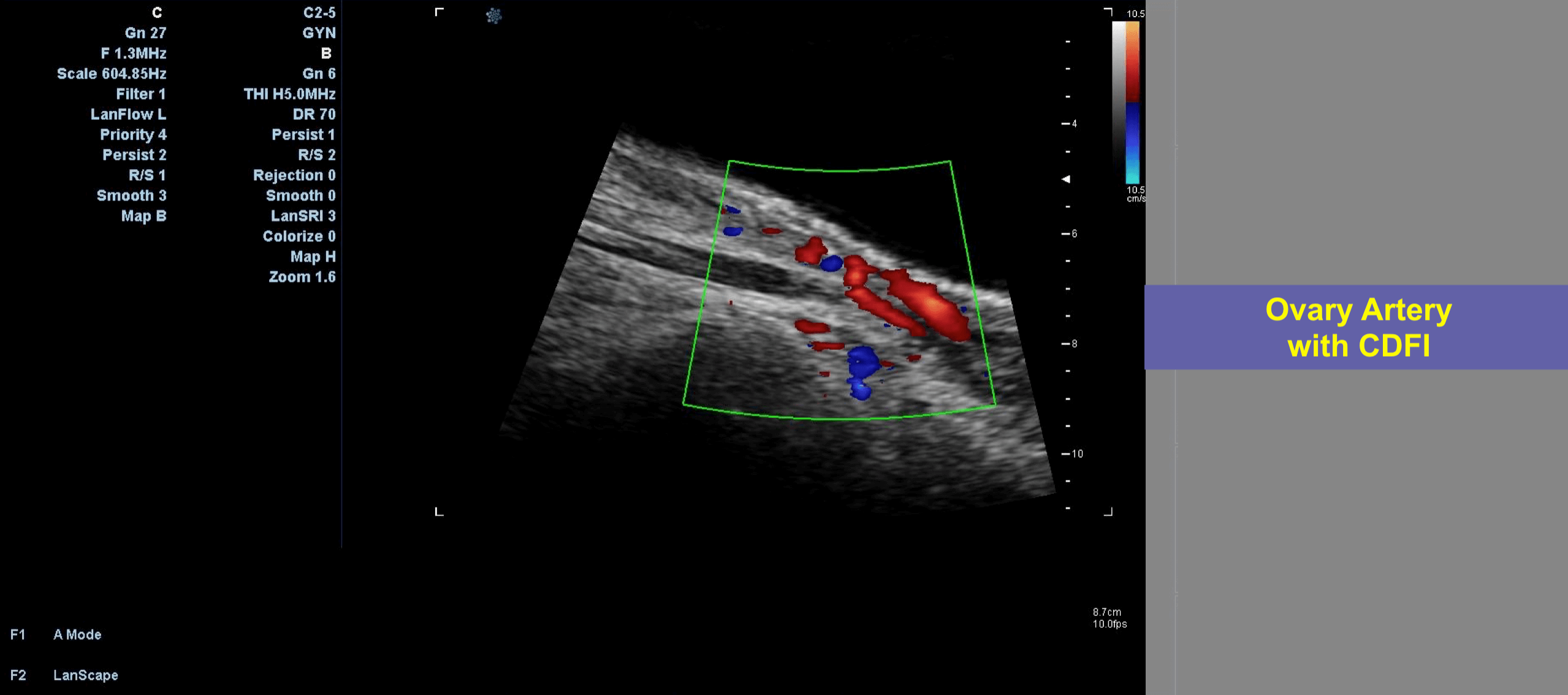

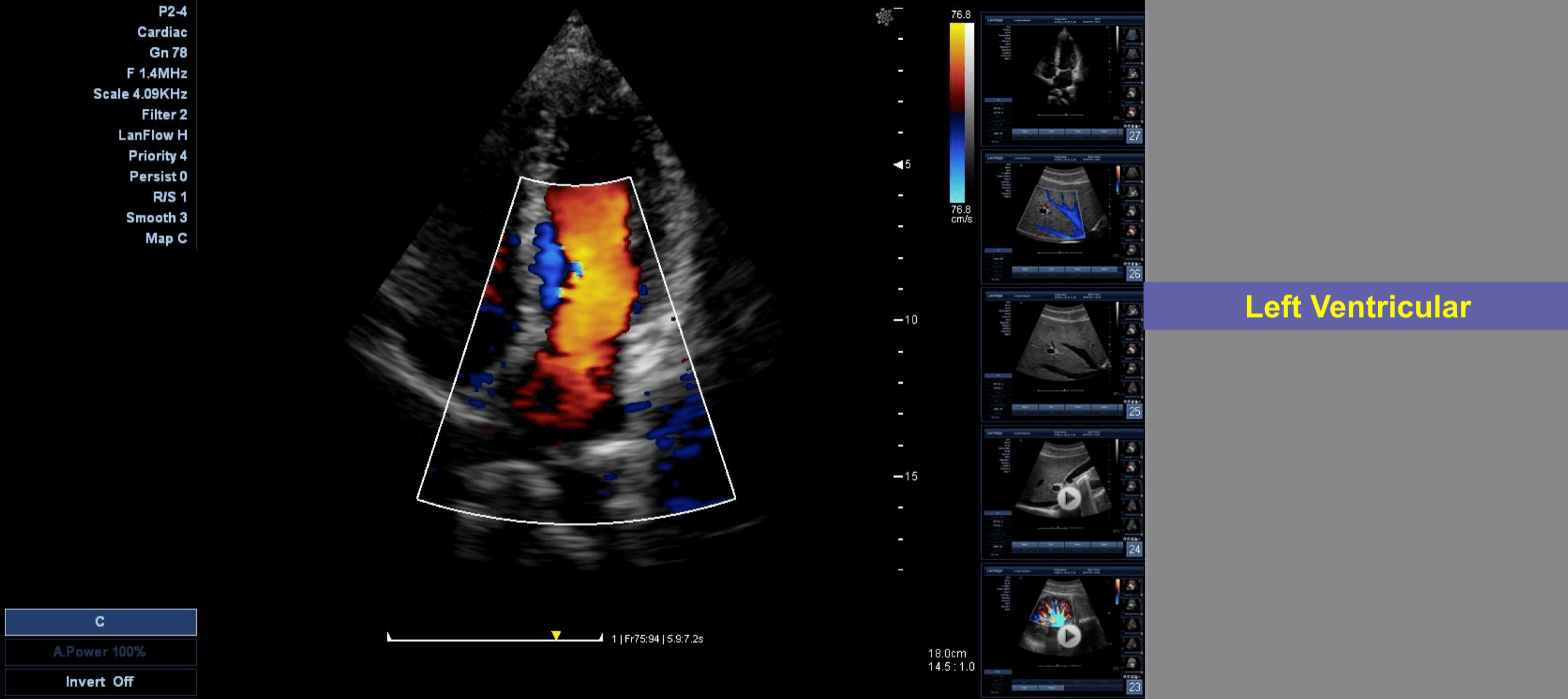

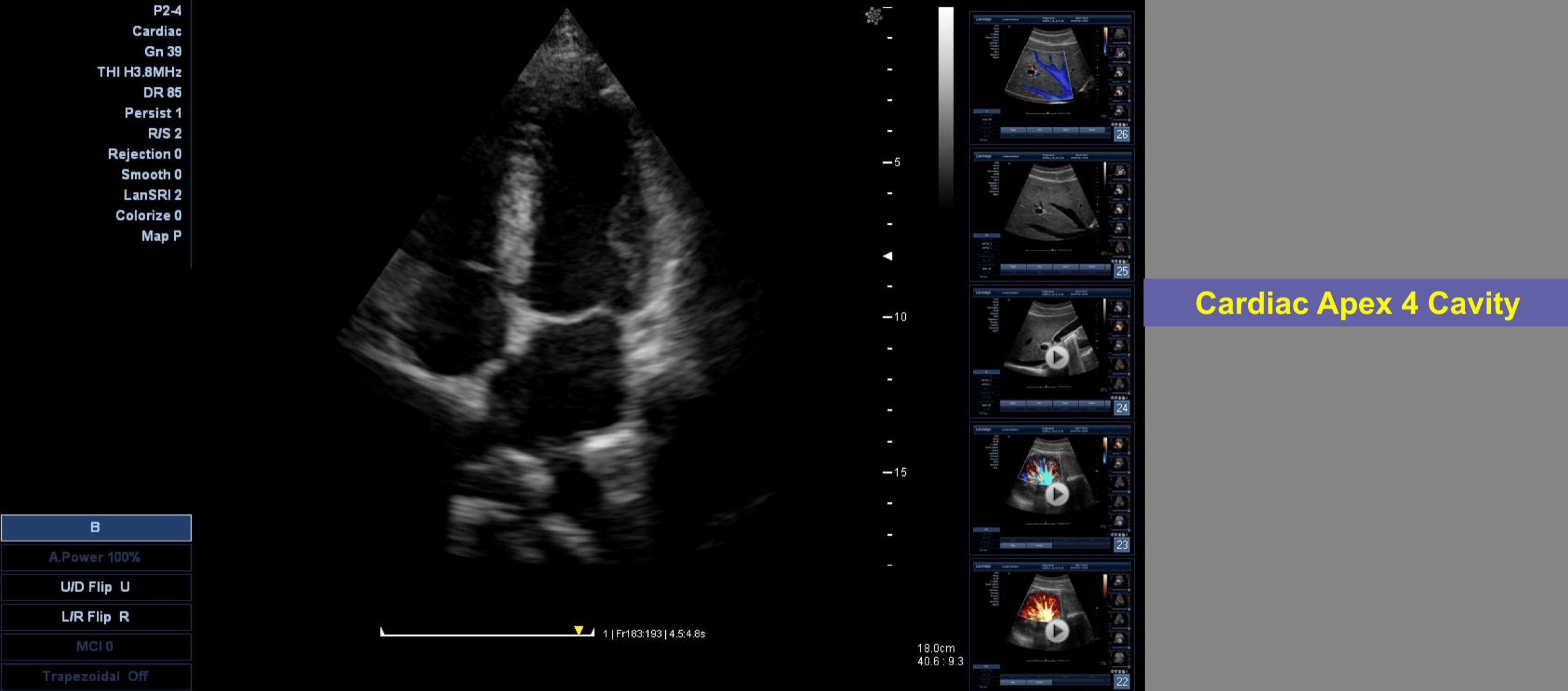

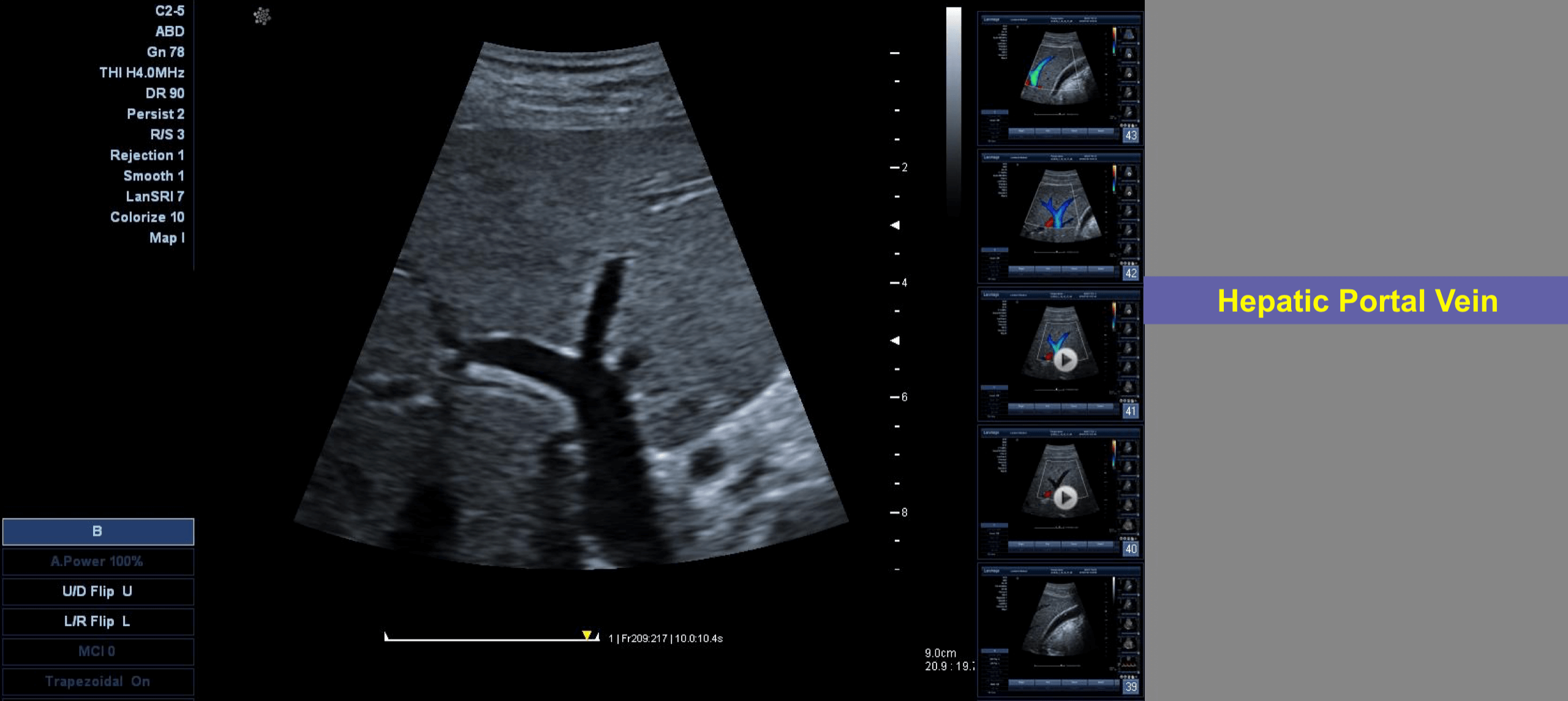

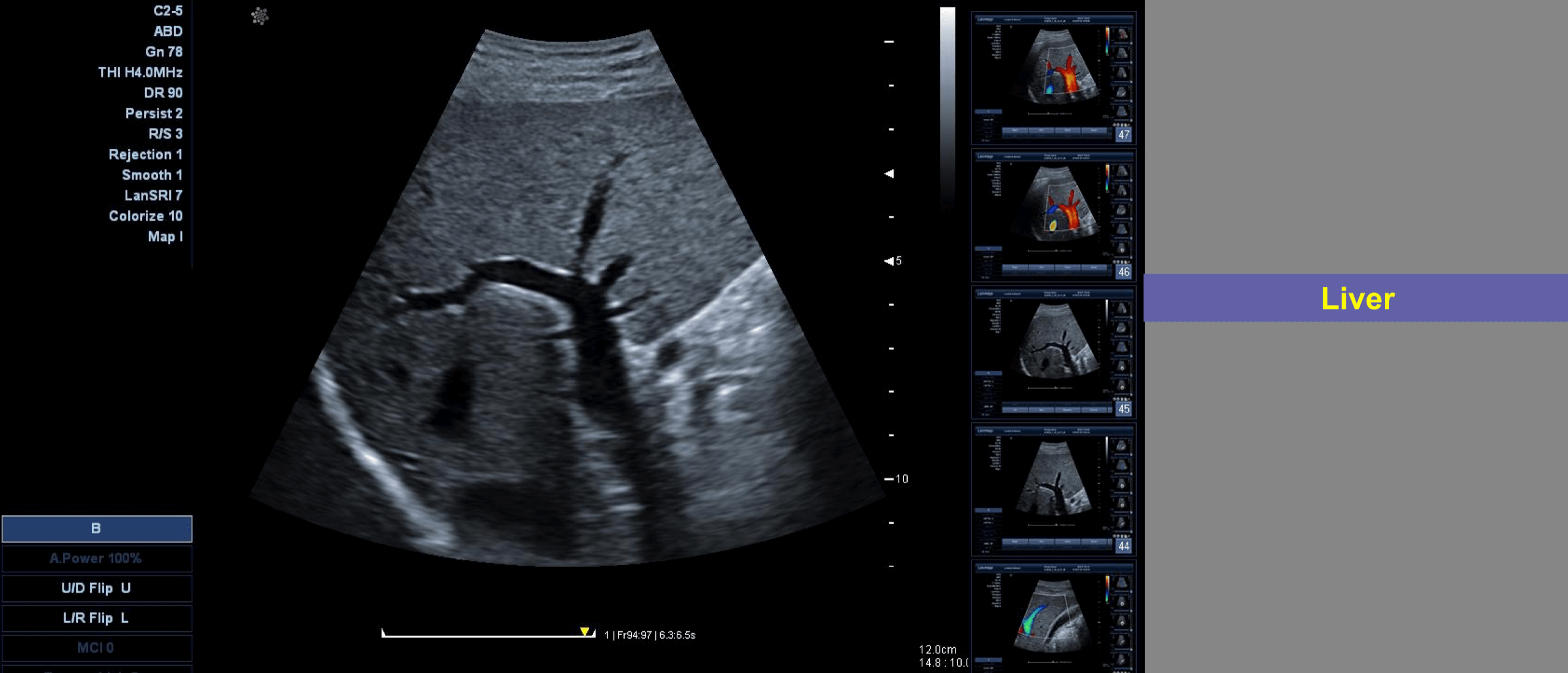

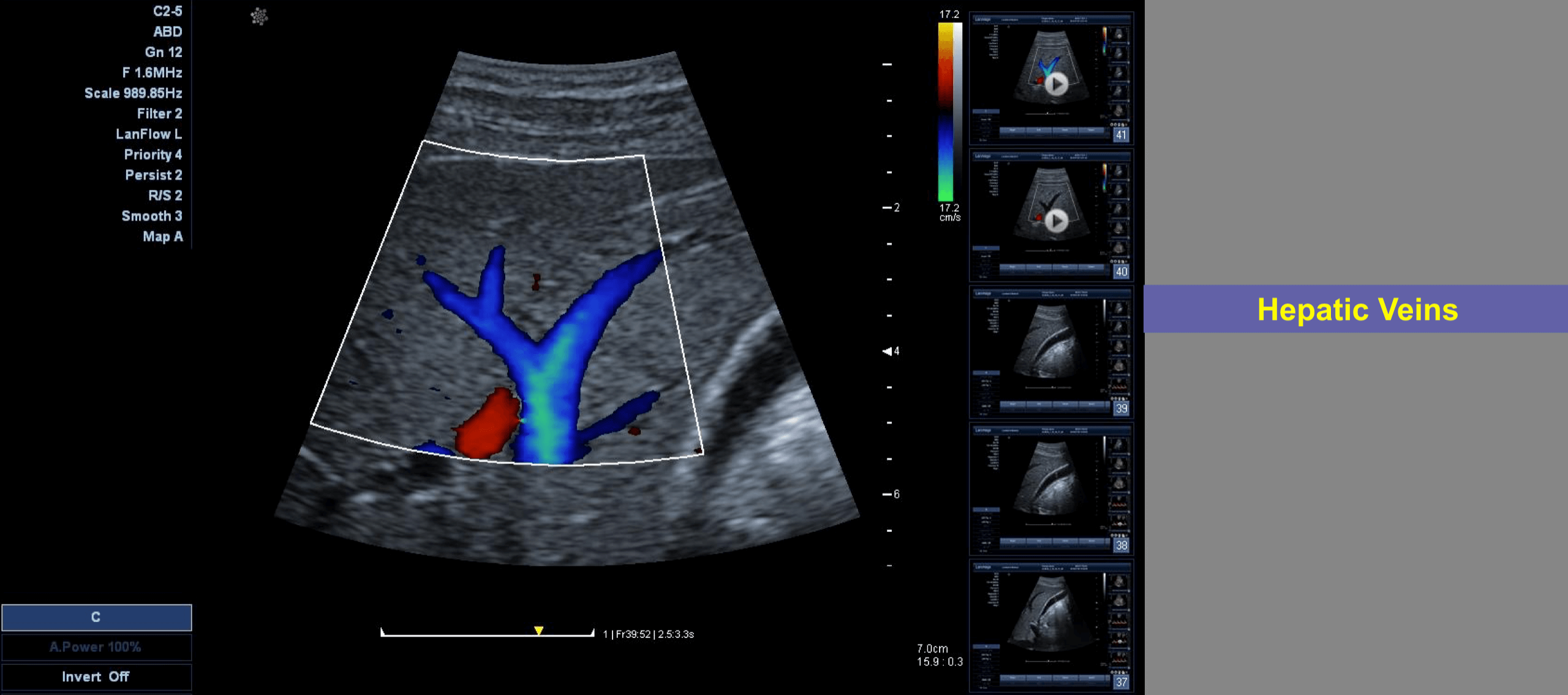

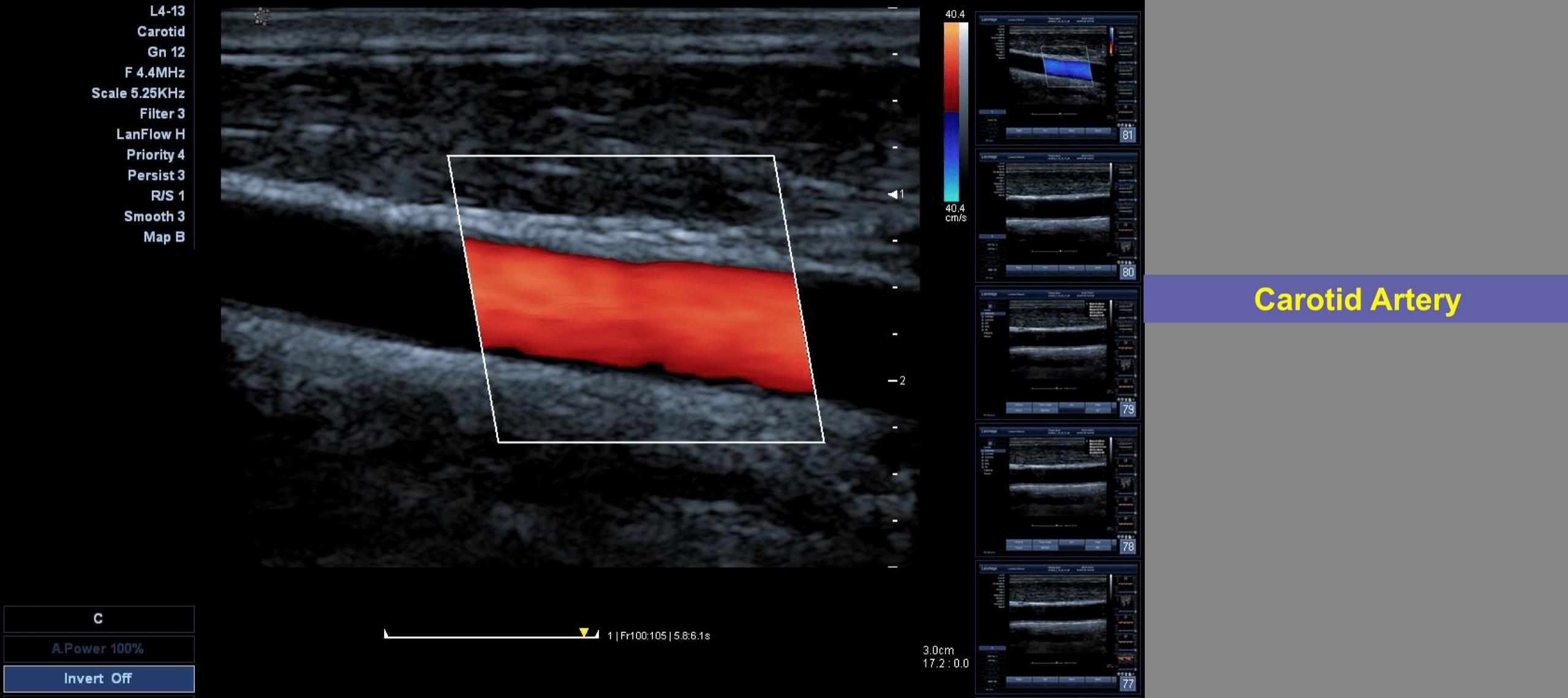

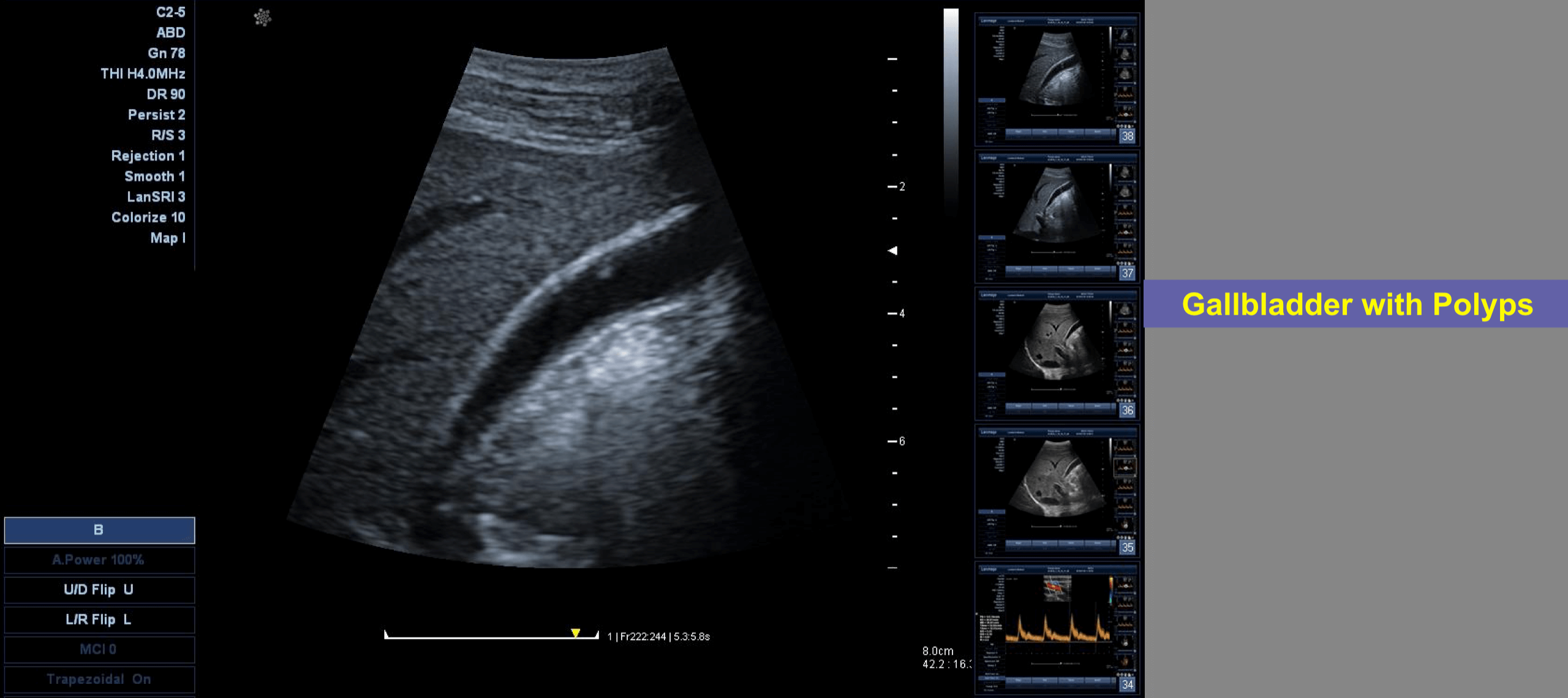

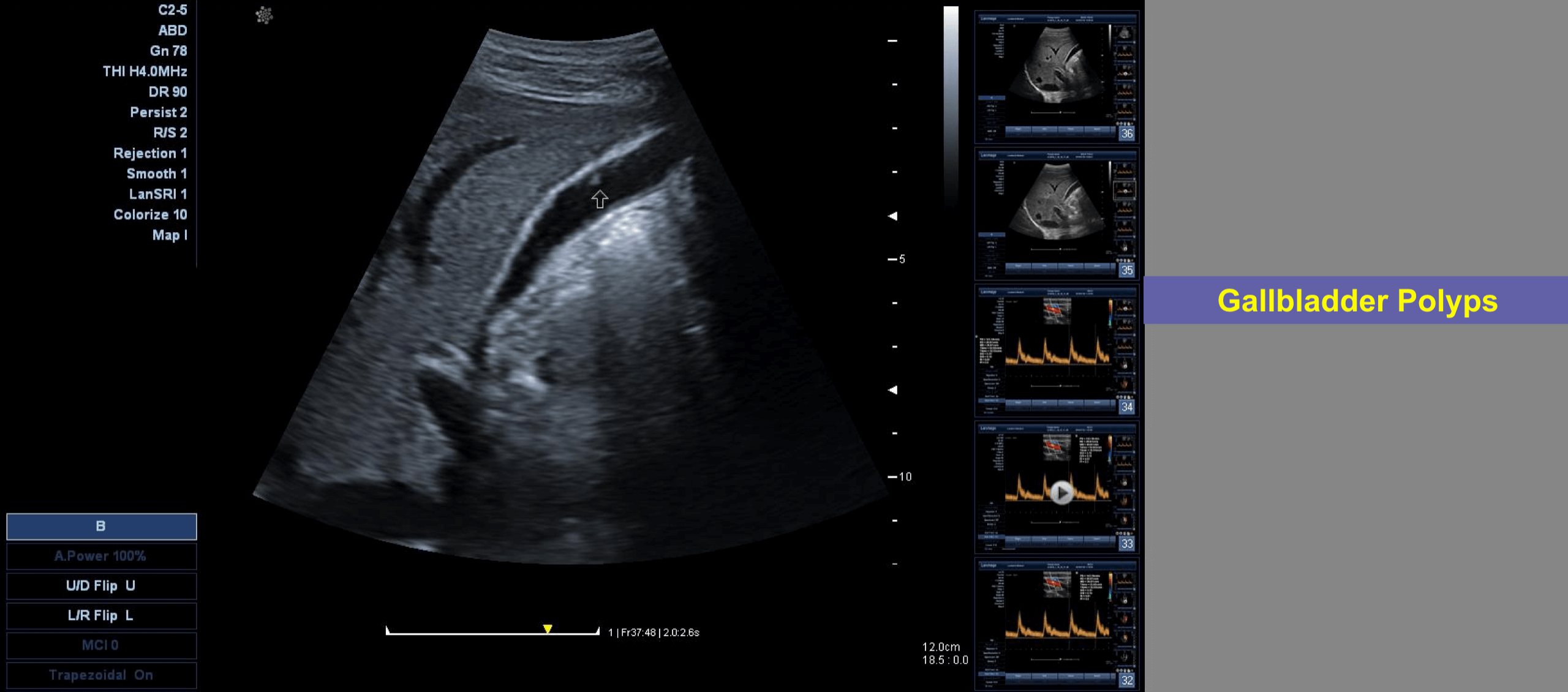

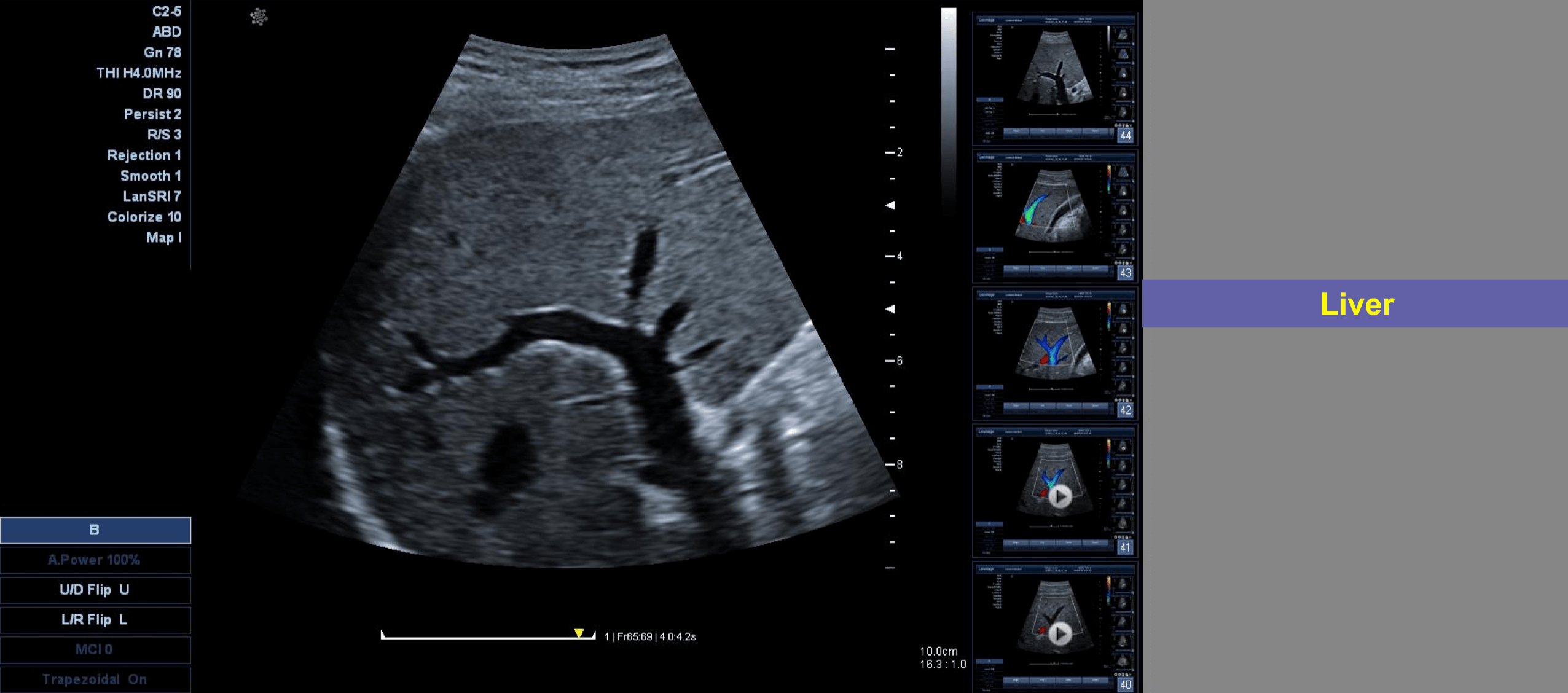

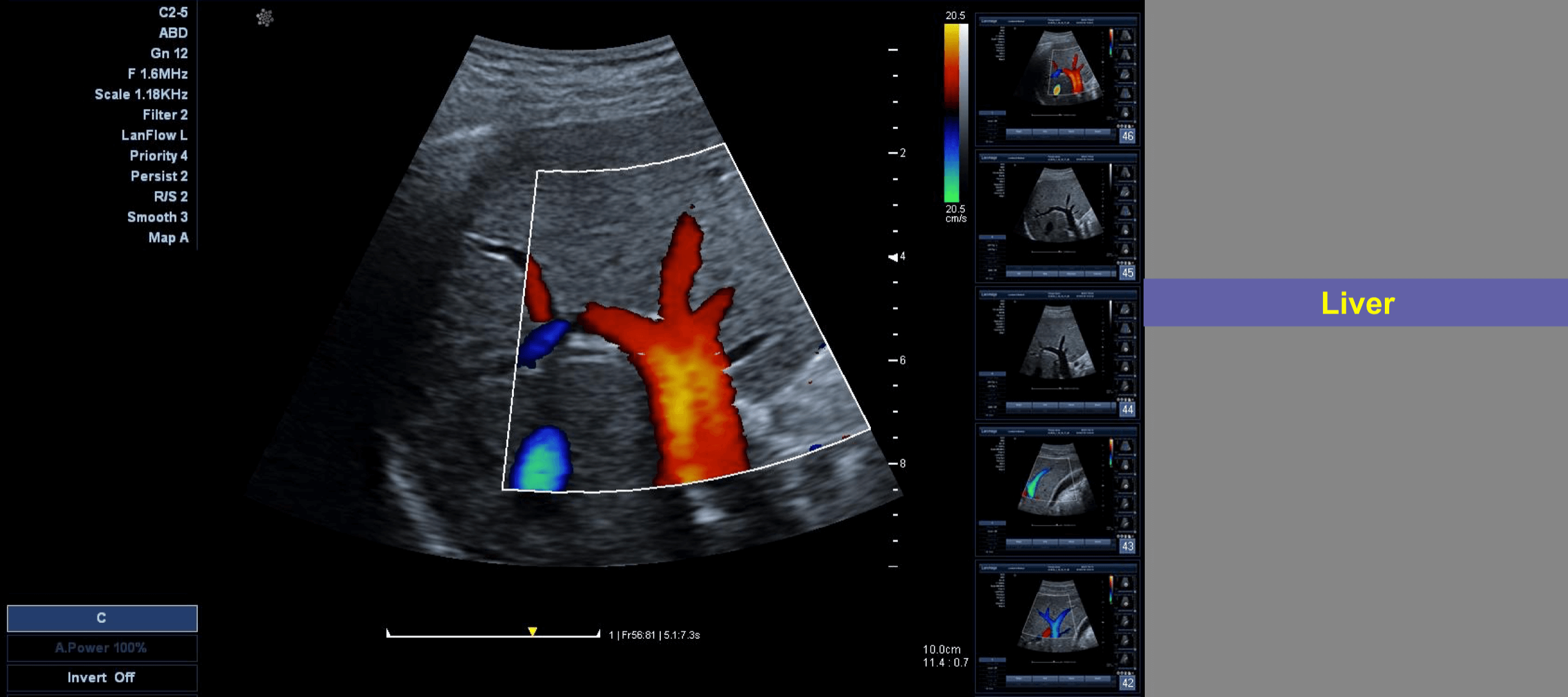

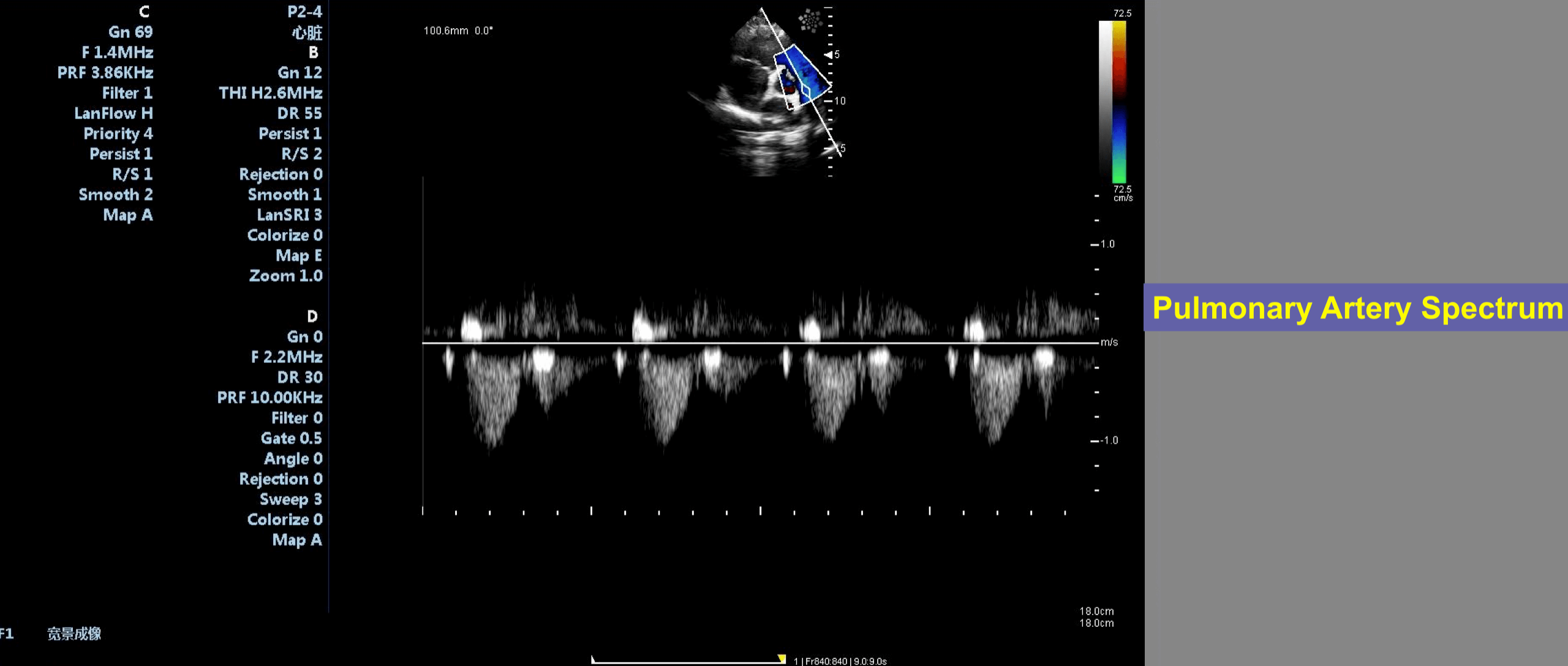

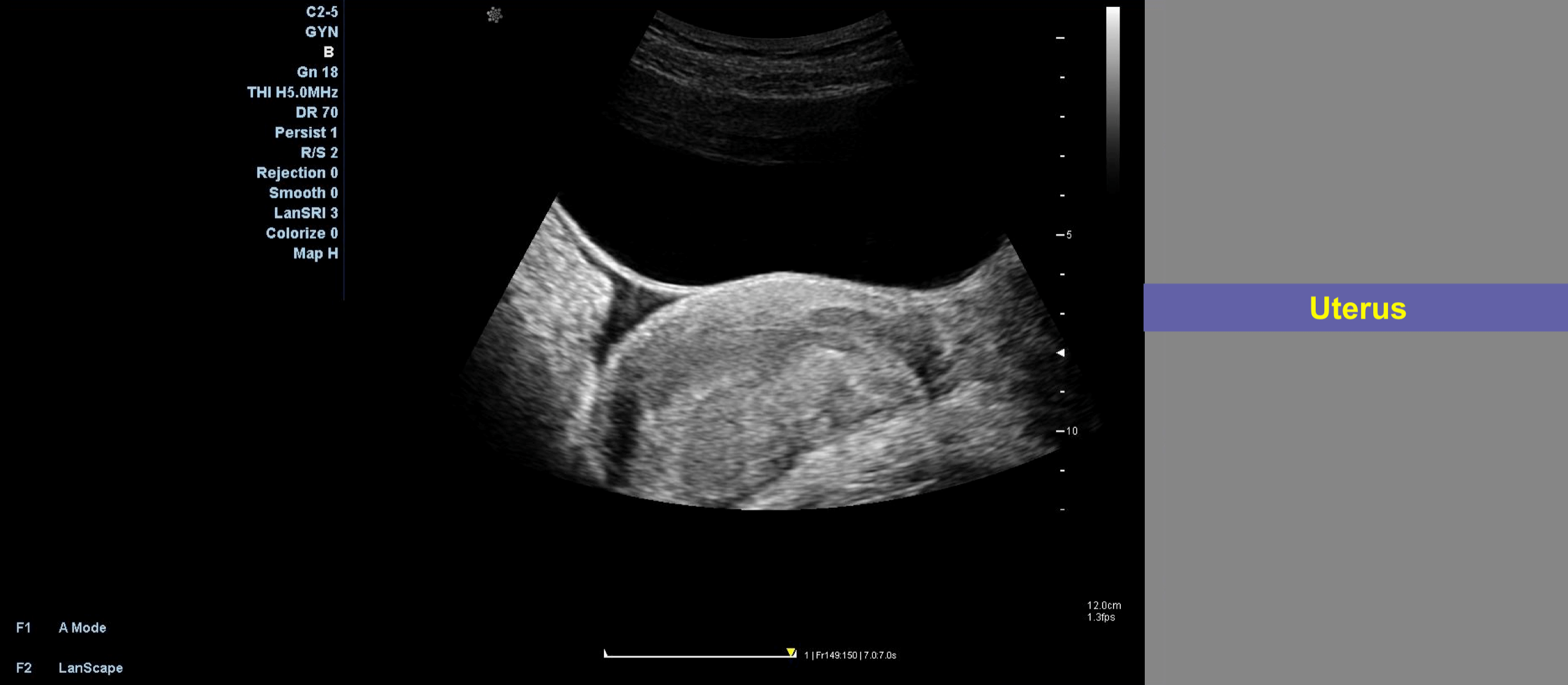

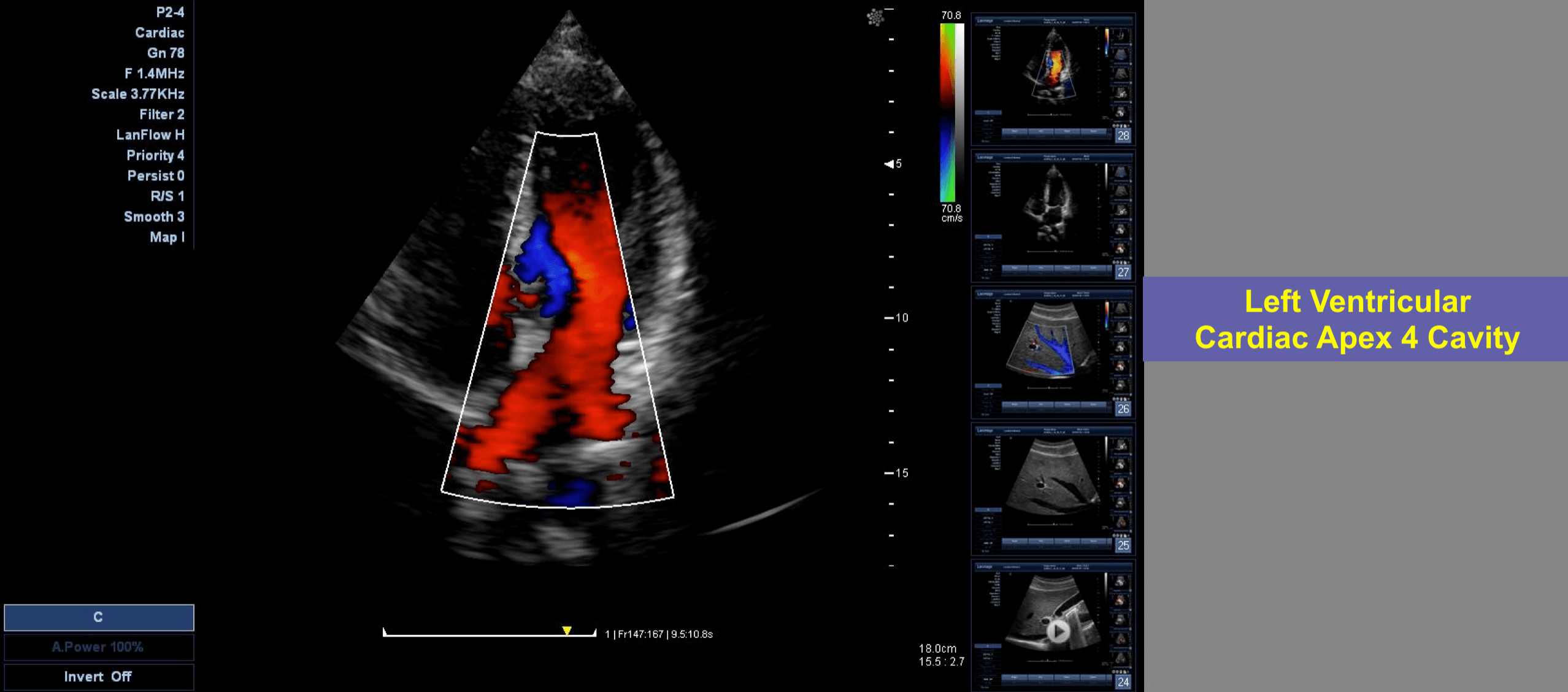

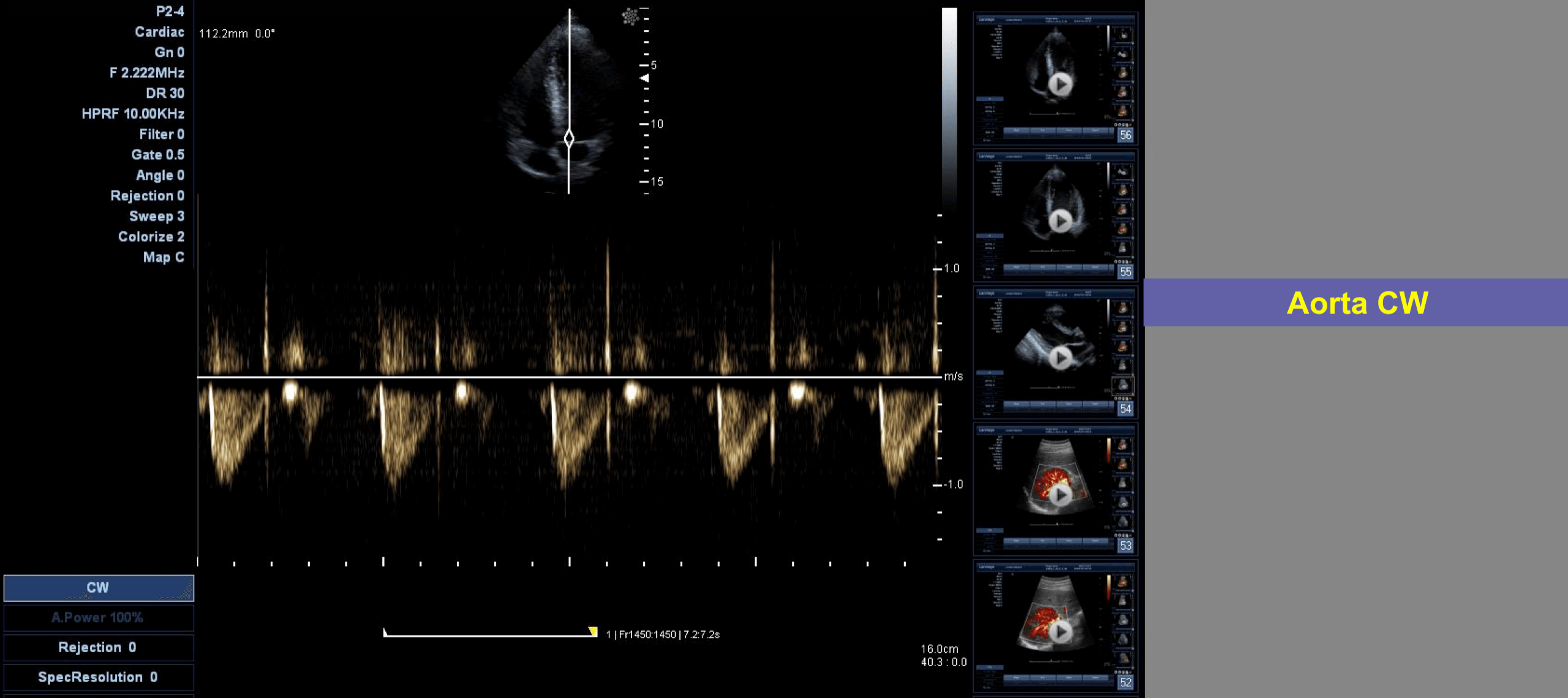

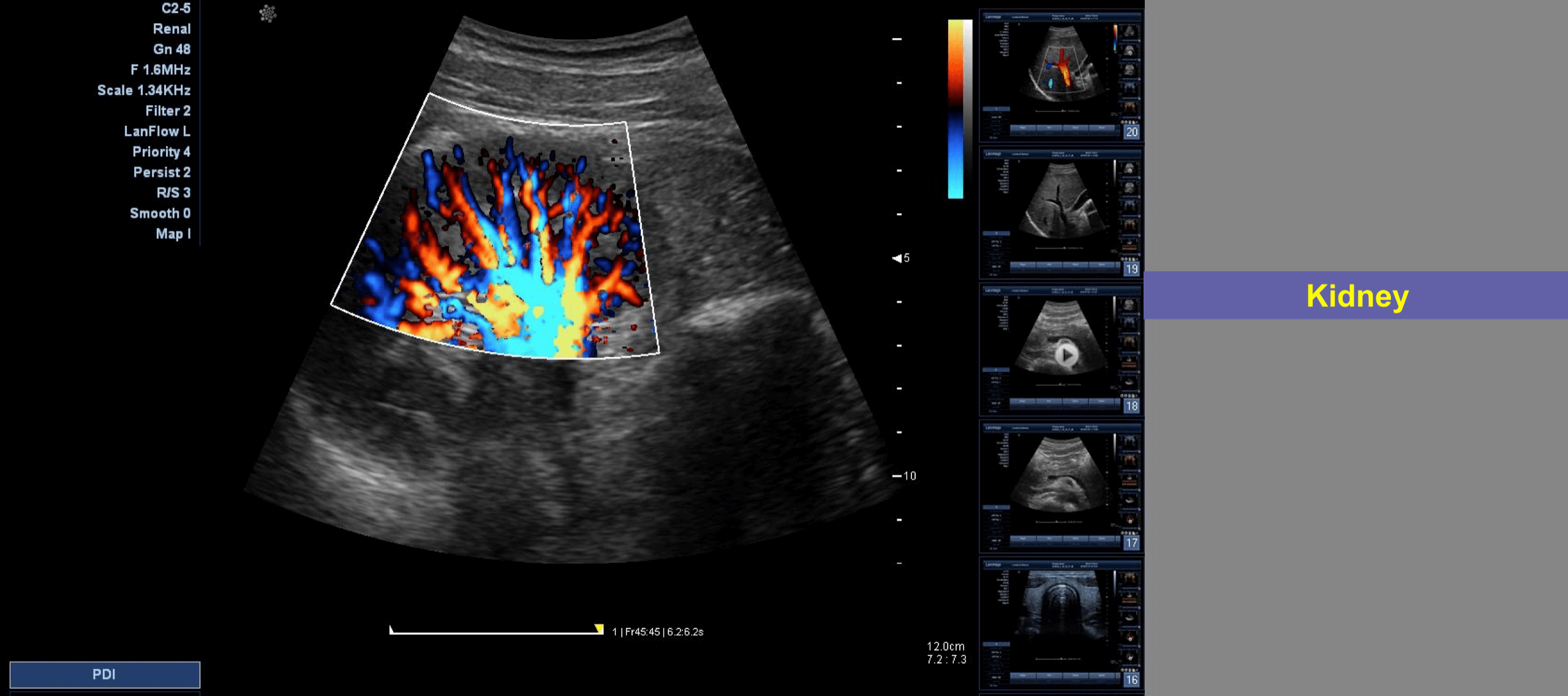

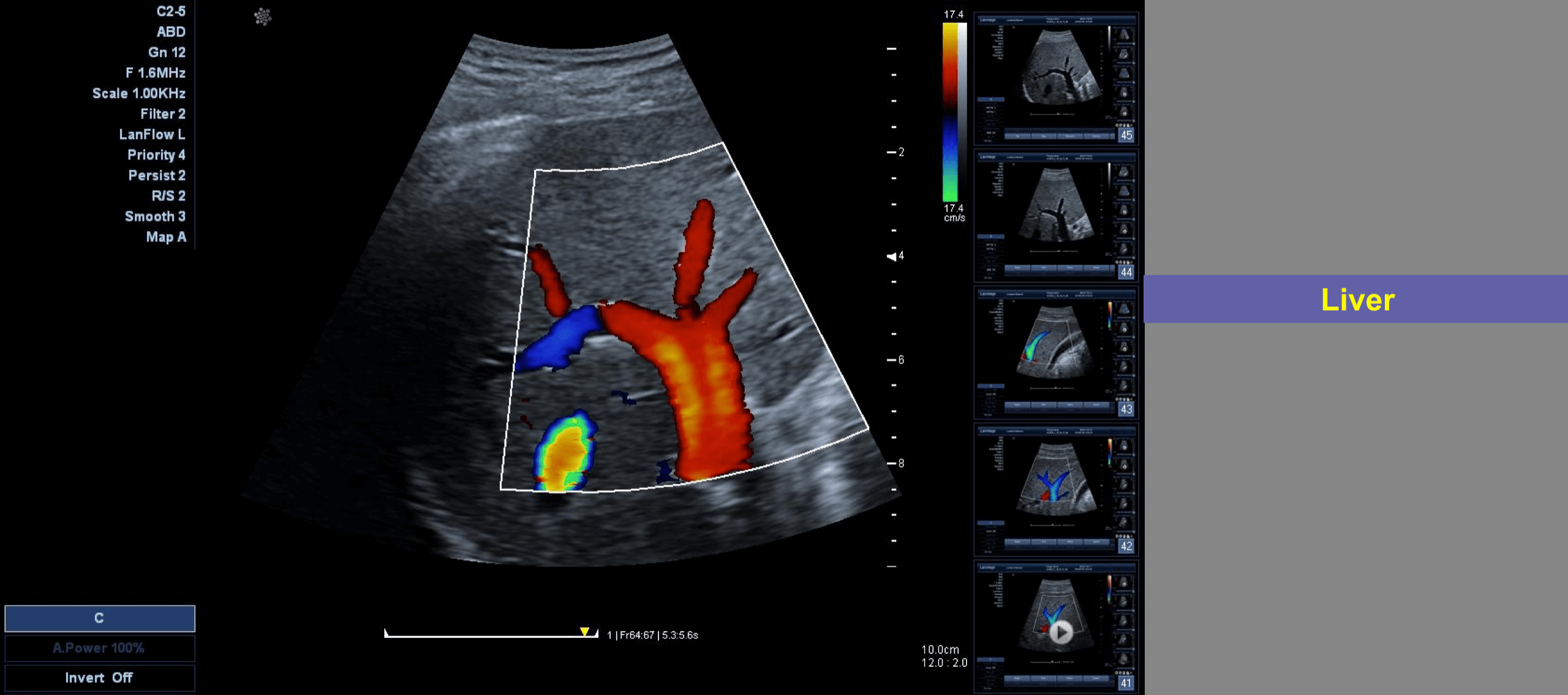

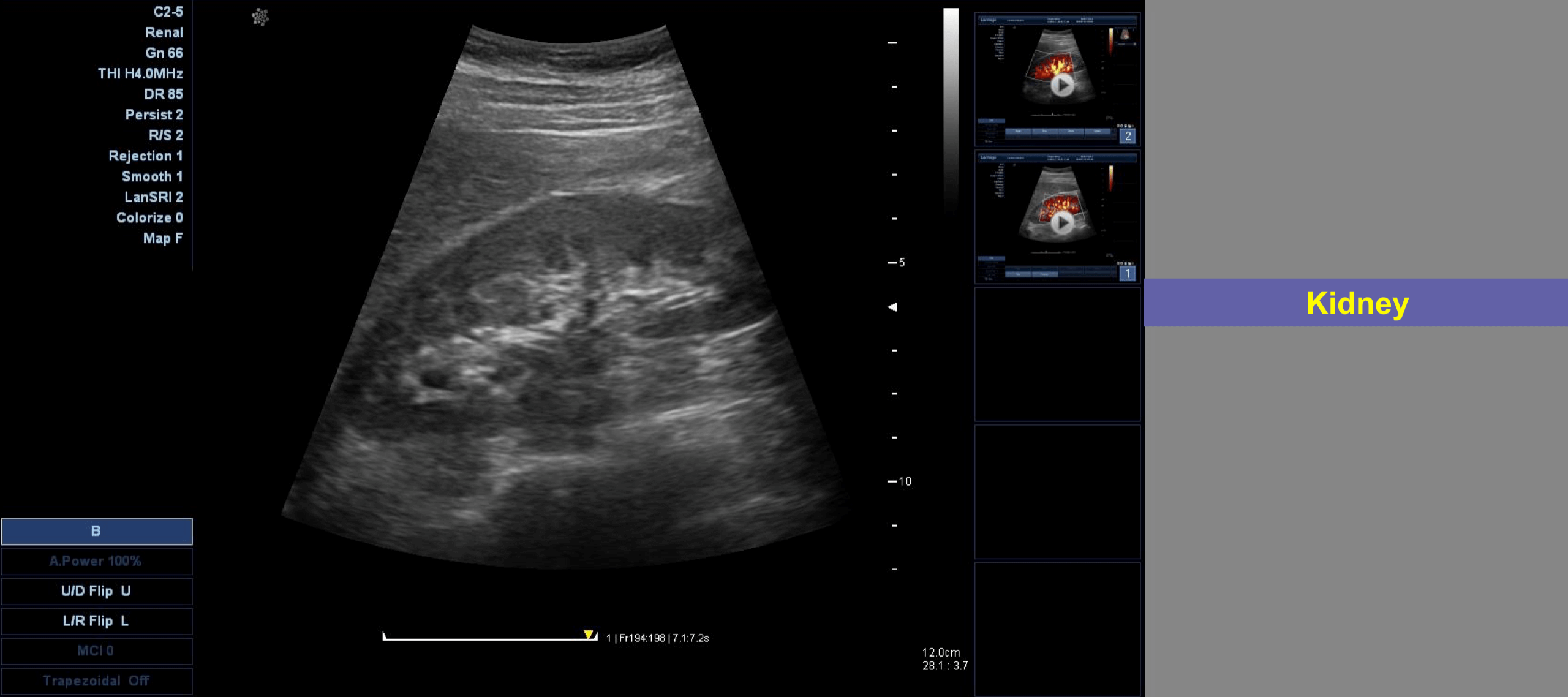

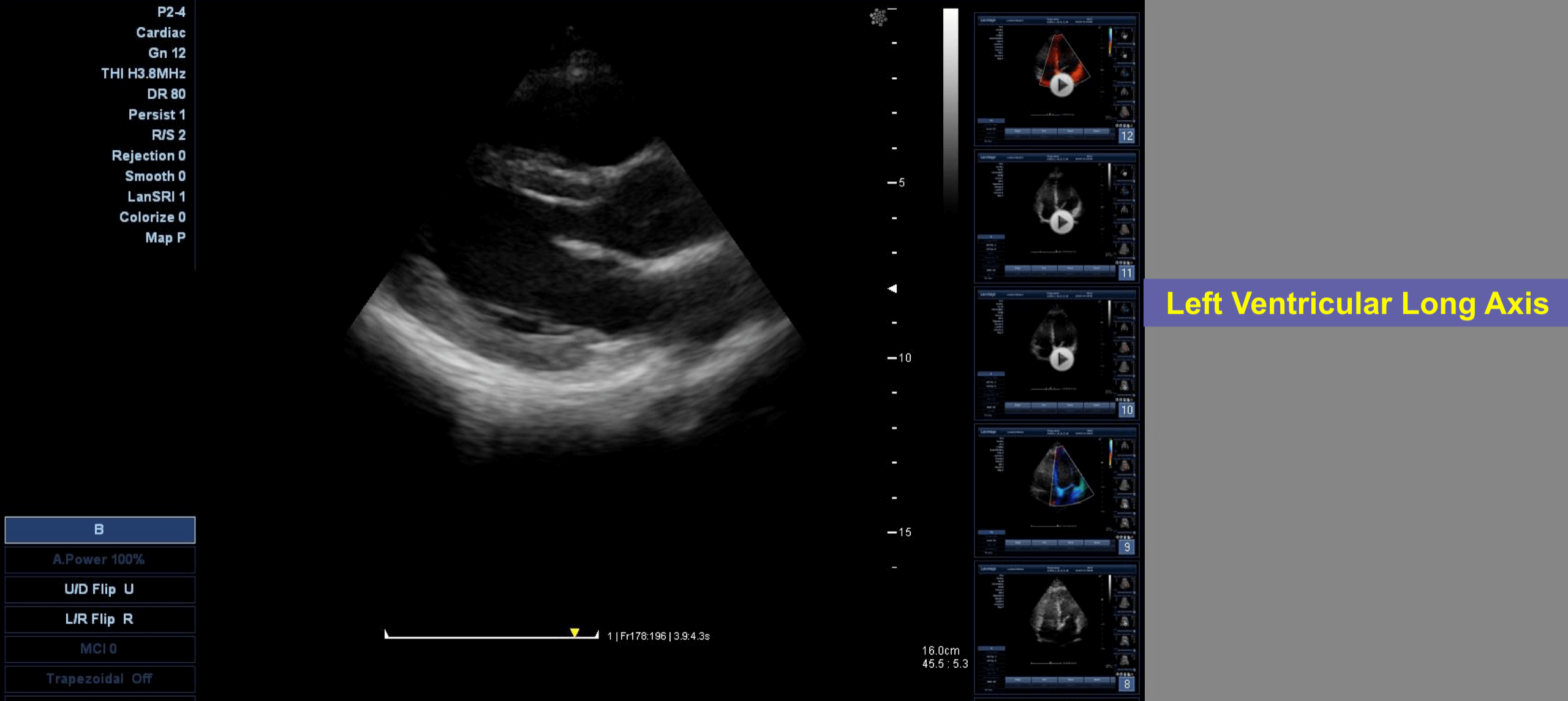

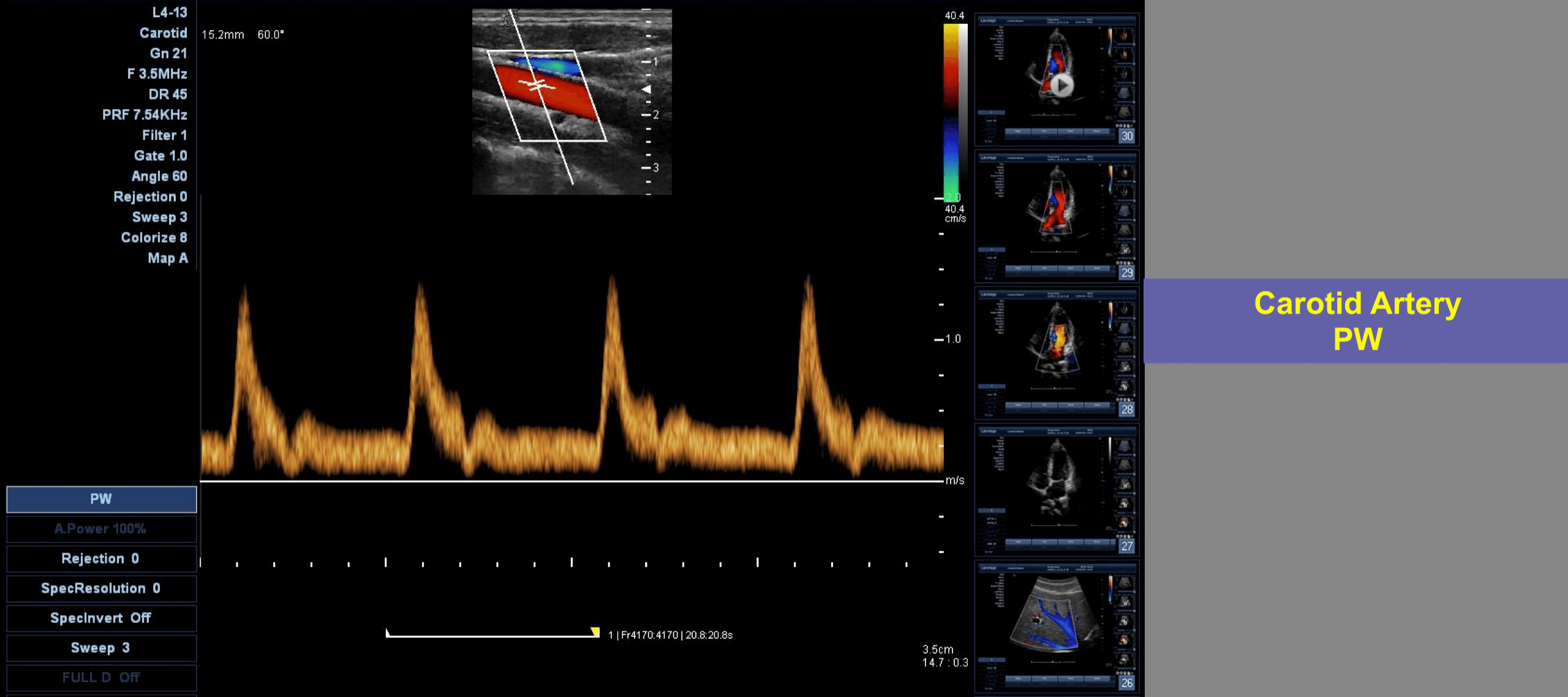

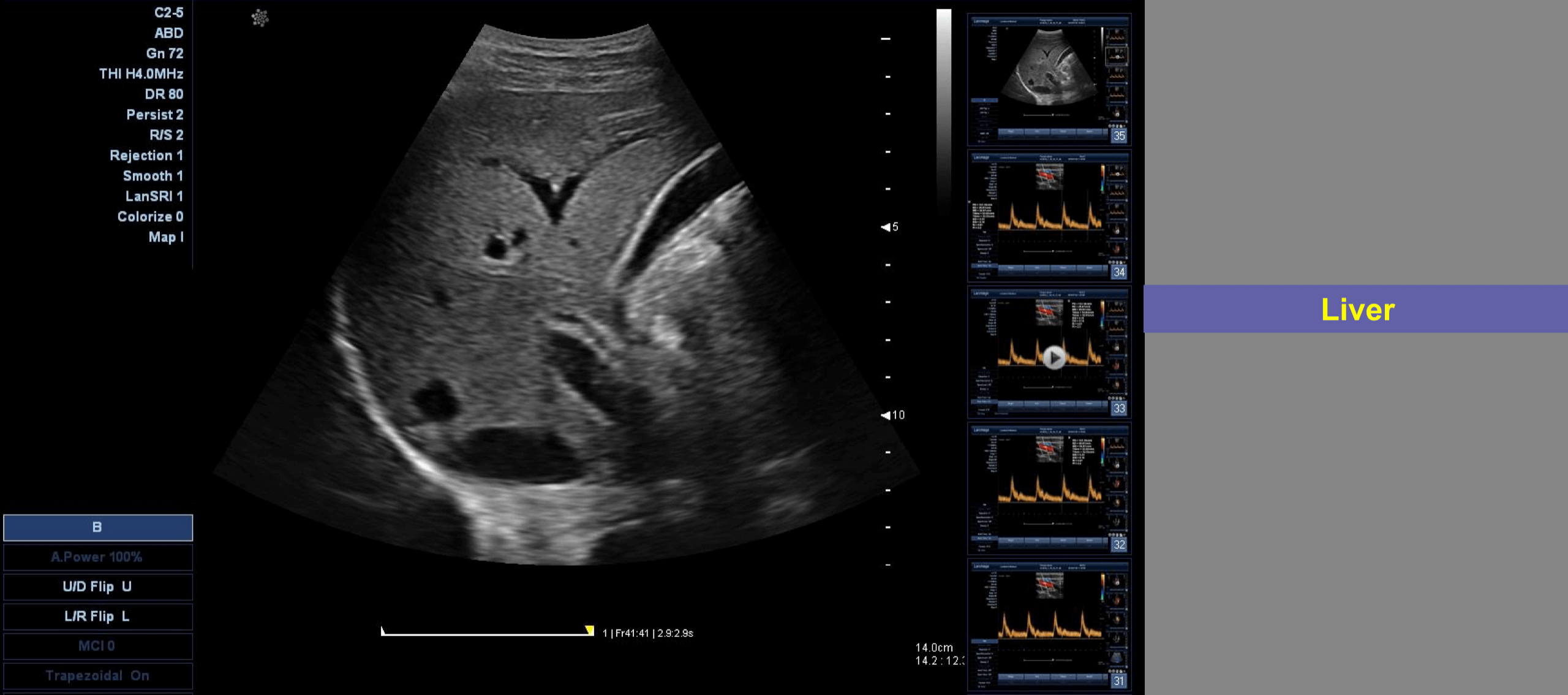

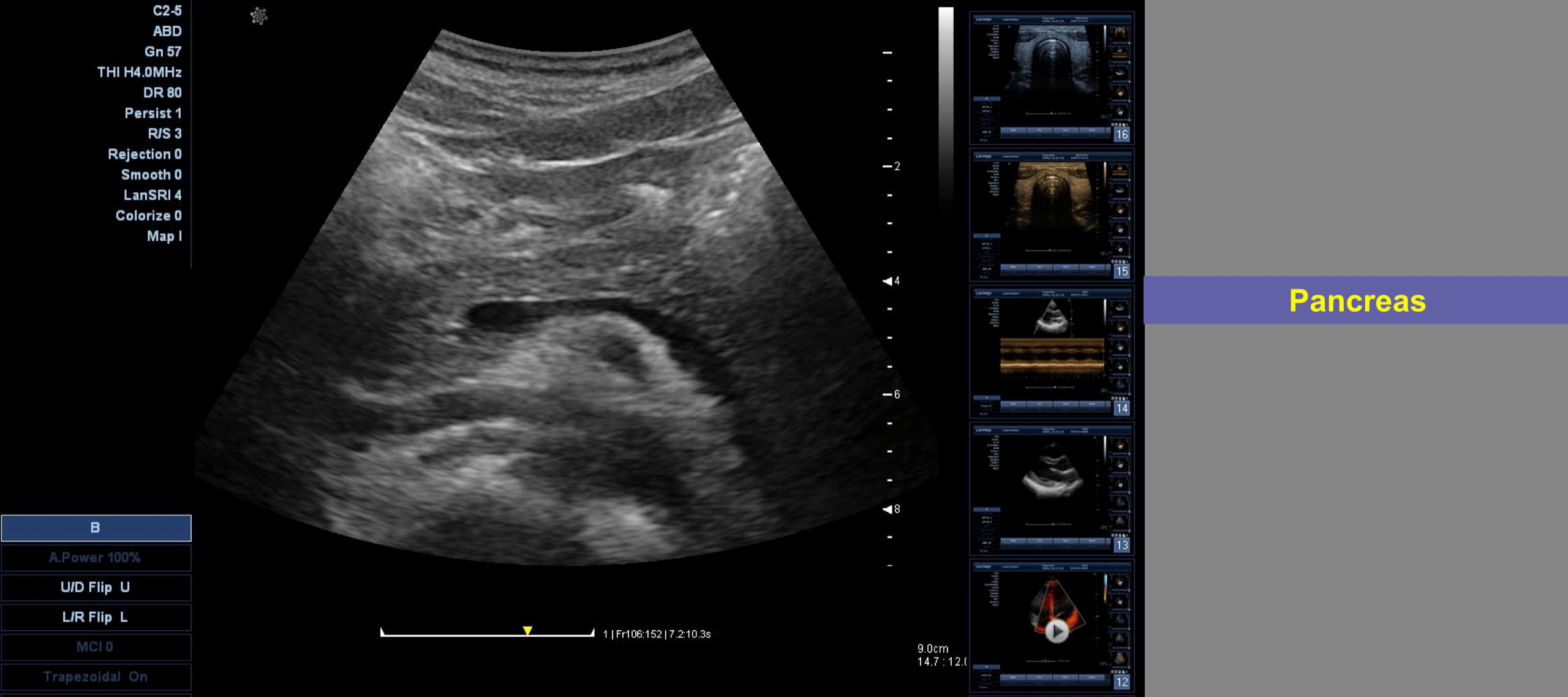

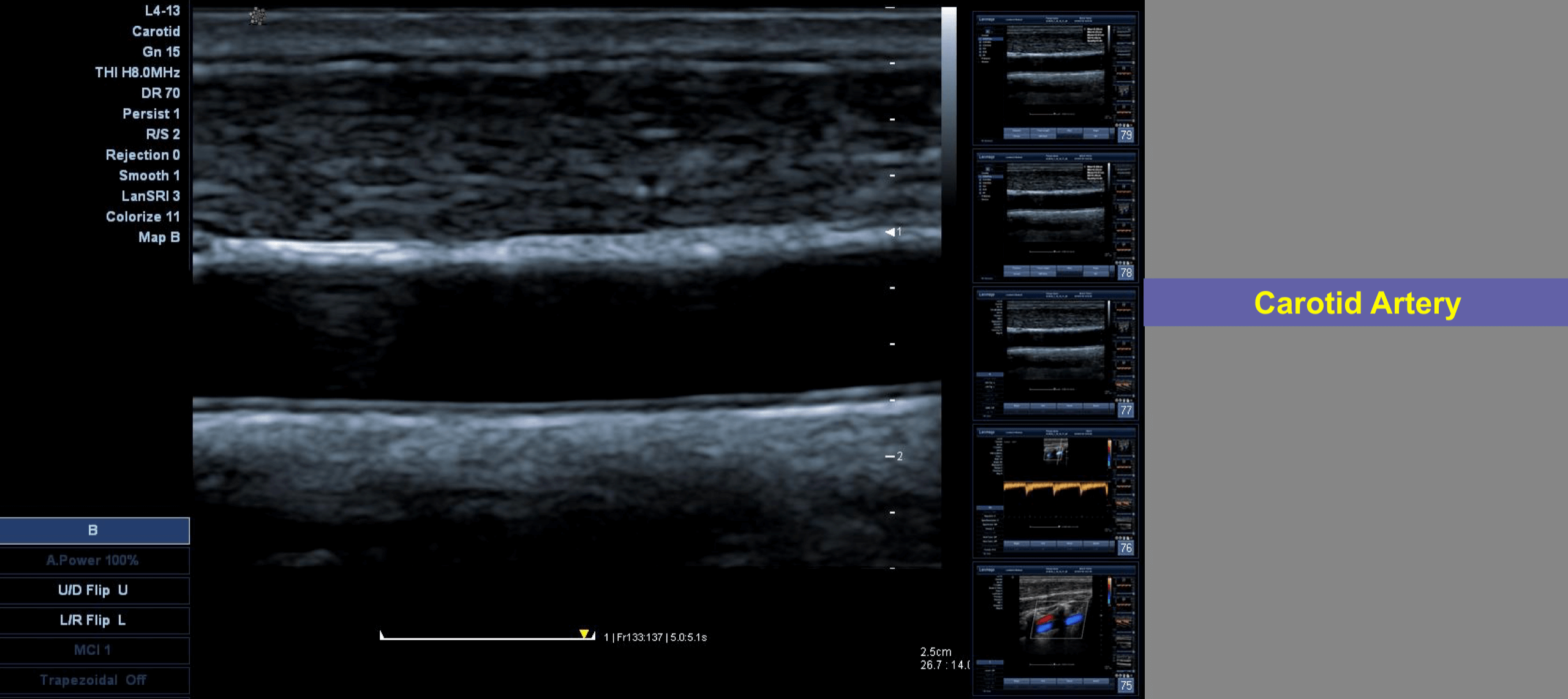

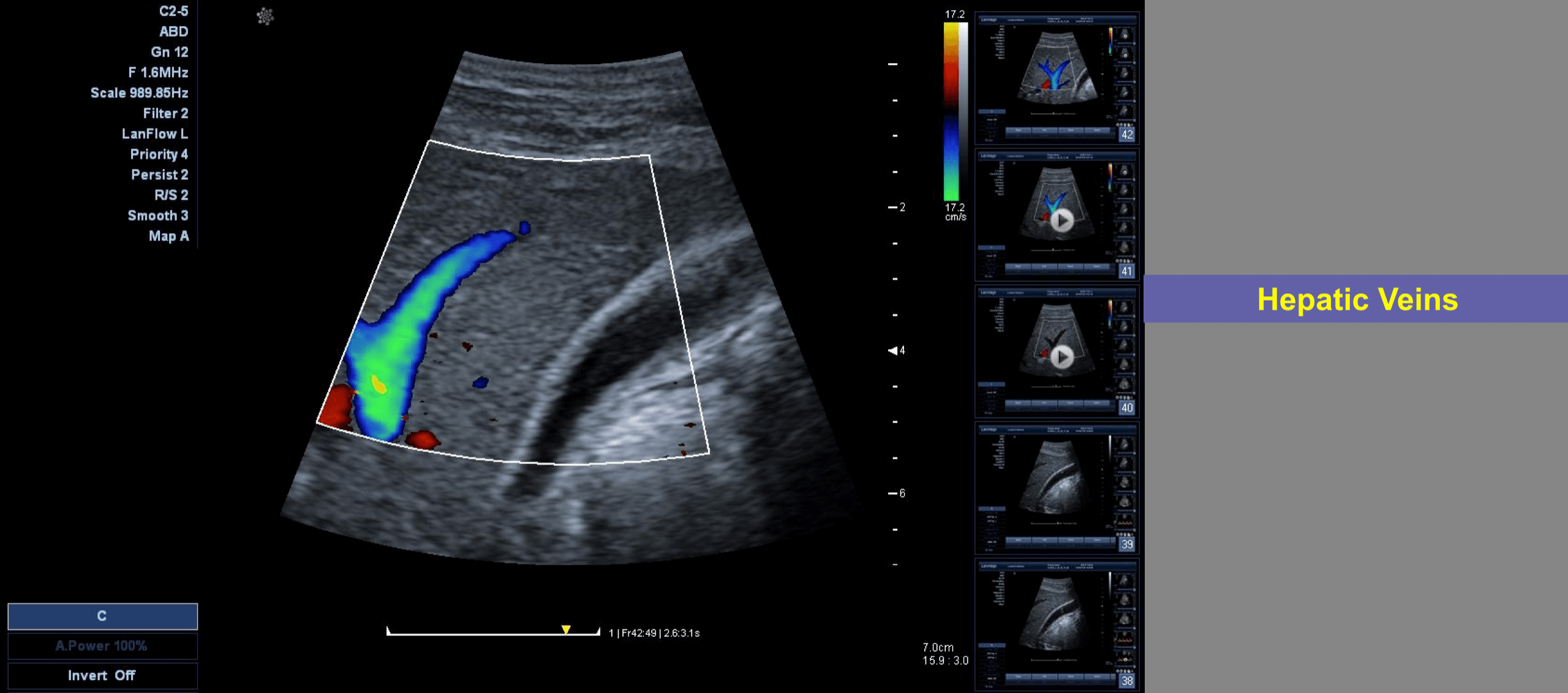

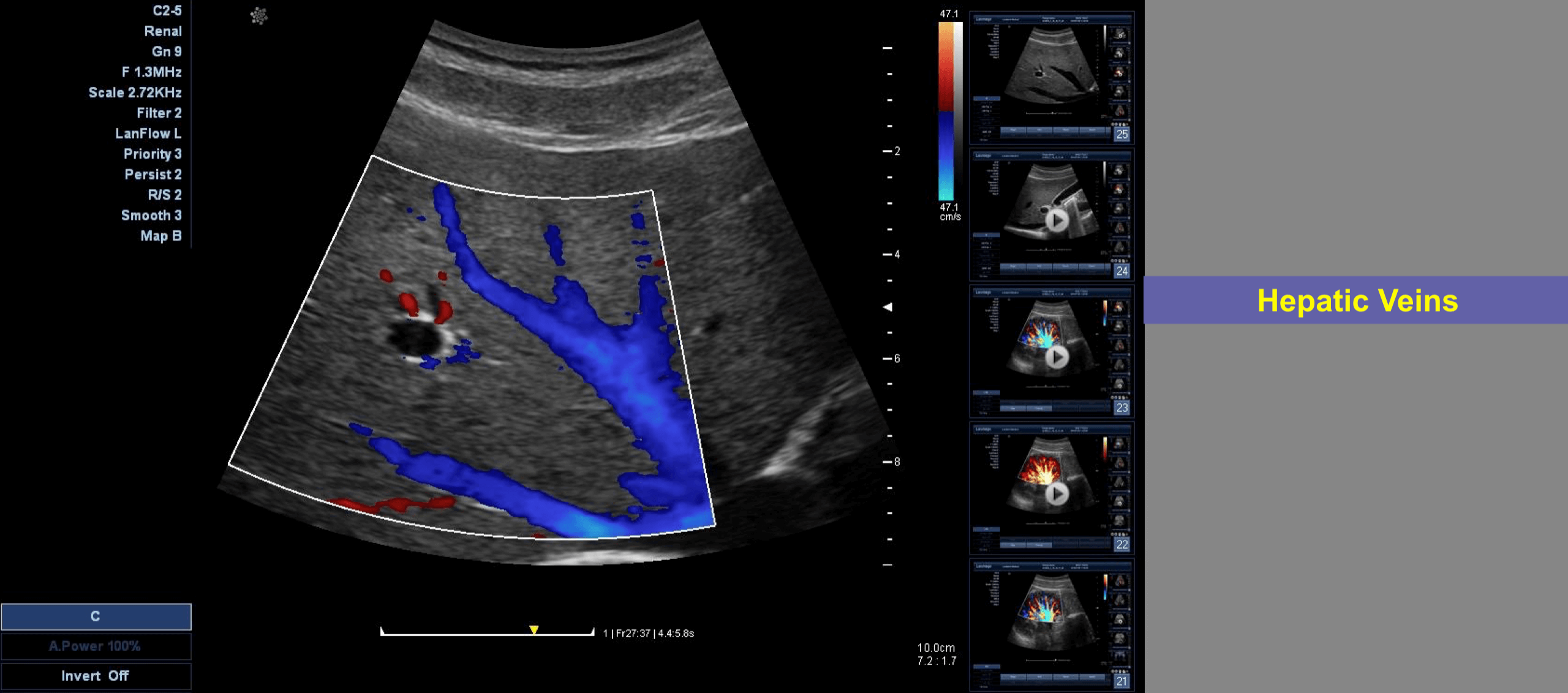

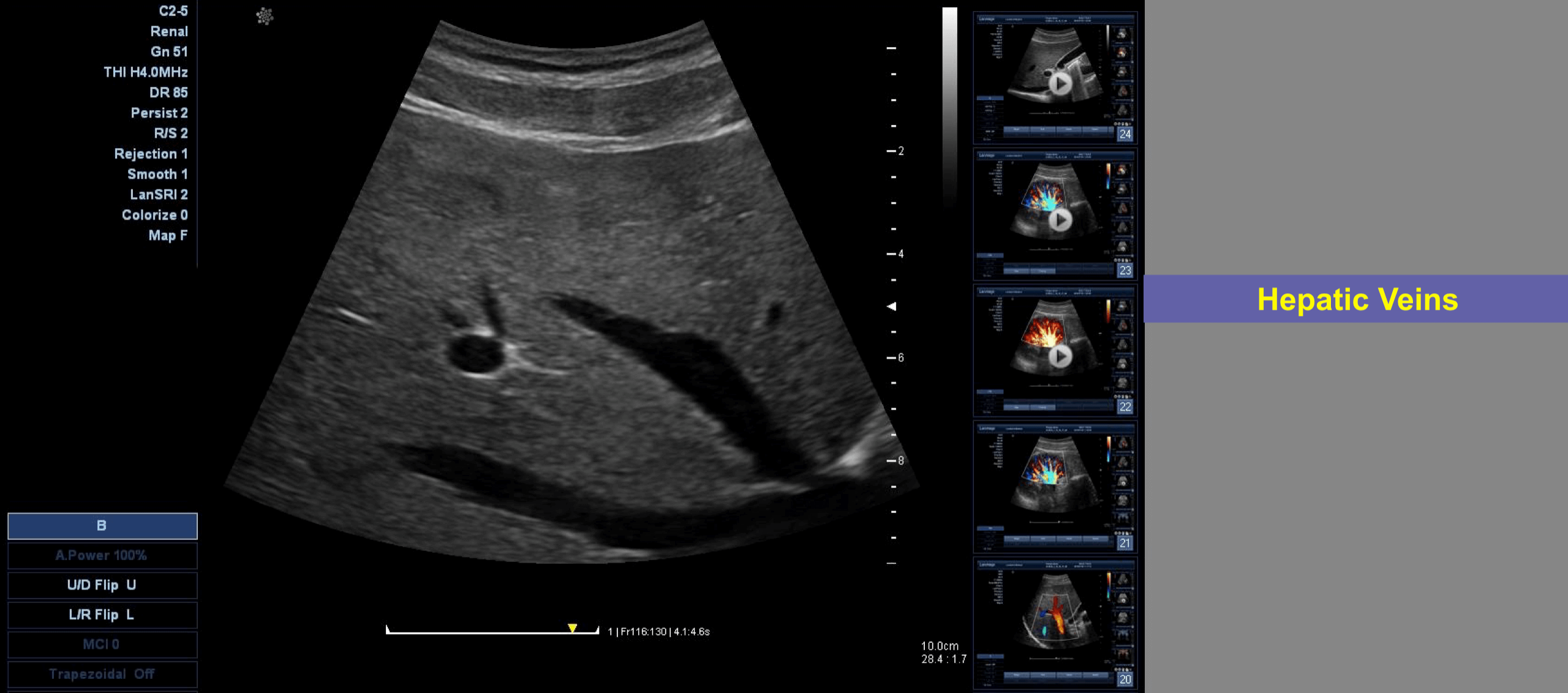

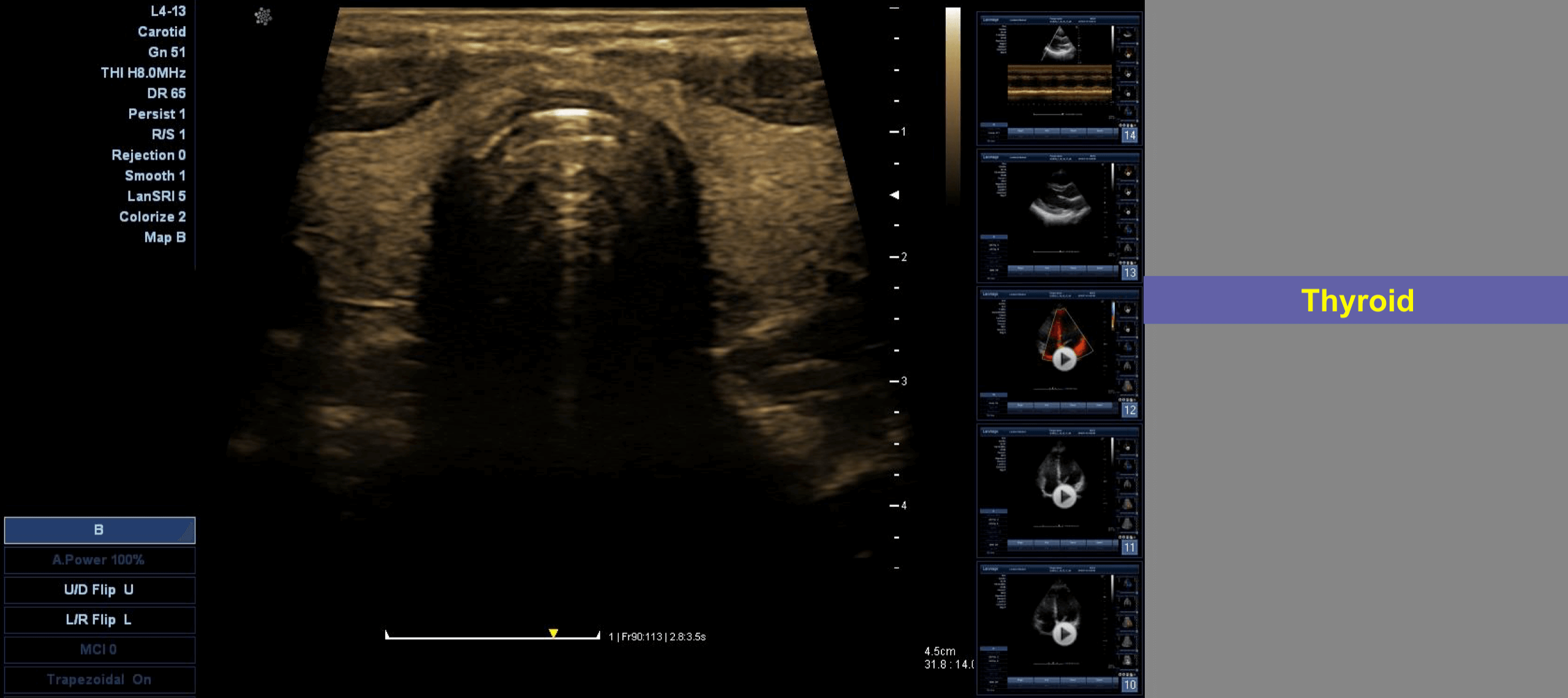

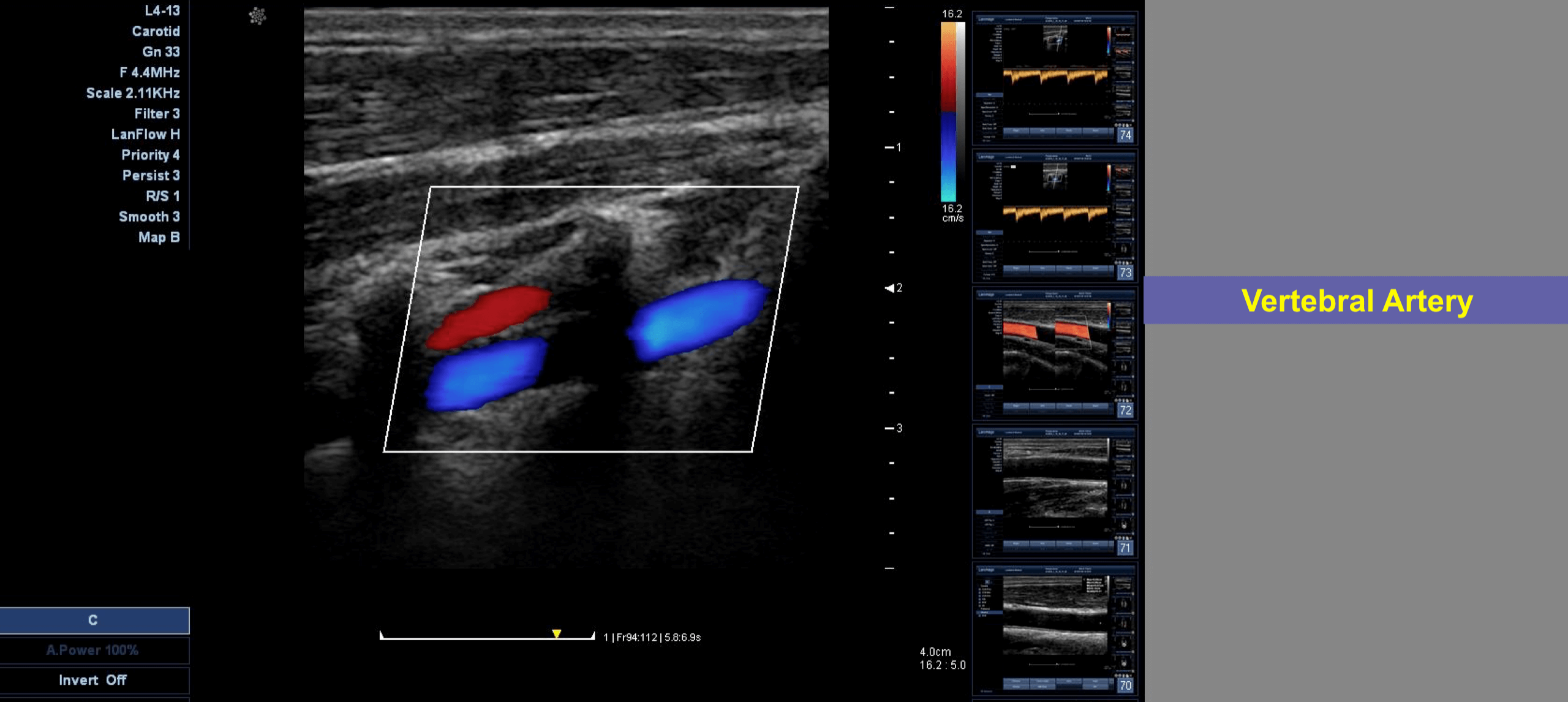

  • Clinical Images

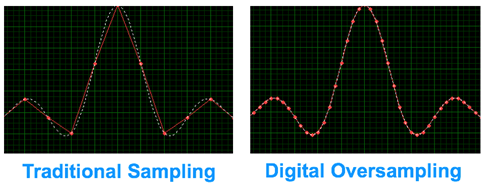

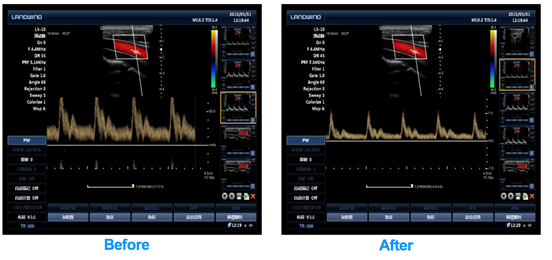

Patent Signal Oversampling

Landwind Medical won patent on Signal Oversampling. This technology can effectively avoid the two-dimensional image distortion brought by linear interpolation of the Digital Signal Controller,remove the noise outside of the blood flow, improve the sensitivity of theblood flow detected, and Increase the grayscale image resolution

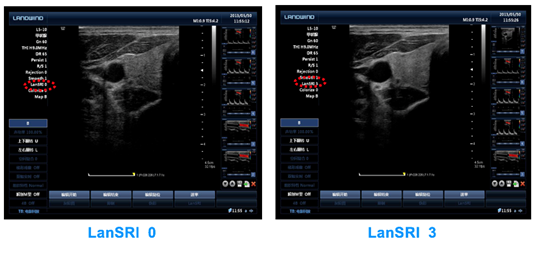

LanSRI: Speckle Reduction Imaging

By LanSRI we mean decompose the image to a group of smaller ones in pyramid structure, analysis the texture information to remove speckle noise in different scales and then reconstruct the image after the noise suppression. LanSRI can help to enhancesmooth along preferred edge direction, reduces variation within speckle region, and maintain local mean gray scale level.

LanSRI can be turned on/off and 4 levels adjustable on:

ϙ        live images

ϙ        frozen images

ϙ        images recalled from the archive


LanBeam: Spatial Compounding Imaging

With LanBeam, we can scan multiple coplanar images from different angles and combine into a single image in real time, one angle will be perpendicular to round or oval reflector. Doctors can get greater smoothness of borders and interfaces, improved contrast resolution and border detection.

ϙ        Images obtained up to 7 different scanning angles

ϙ        4 levels adjustable

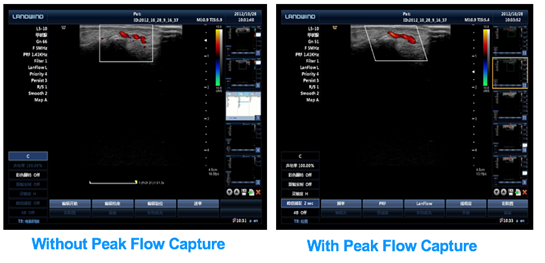

Color Flow Peak Velocity Capture

Capture the peak flow signals within a certain time duration, in order to improve the low speed blood flow and low perfusion organ such as tumor blood supply.

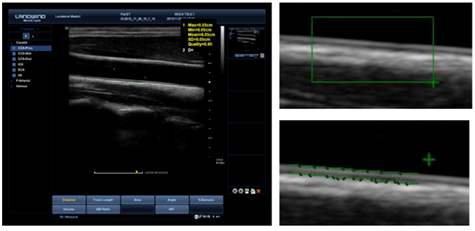

Auto IMT

Automated measurement of the intima-media thickness of the carotid artery wall, for evaluating an asymptomatic patient’s risk of developing cardiovascular disease.


Tissue Specific Imaging

Sound Speed varies in different tissues.Tissue Specific Imaging enables doctors to adjust the speed of sound according to patient condition so as to minimize beam distortion and improve imaging results and diagnostic outcome. It has 4 adjustable levels: General, MSK, Fluid and Fat.

Anatomical M-mode:

A novel technique for the quantitative evaluation of regional wall motion analysis during dobutamine echocardiography.Mirror series color doppler’s 3 lines AMM permit a more detailed analysis of cardiac chambers diameters obtained by linear measurements, regional wall motion of the left ventricle (both at rest and during stress), and location of accessory pathways.

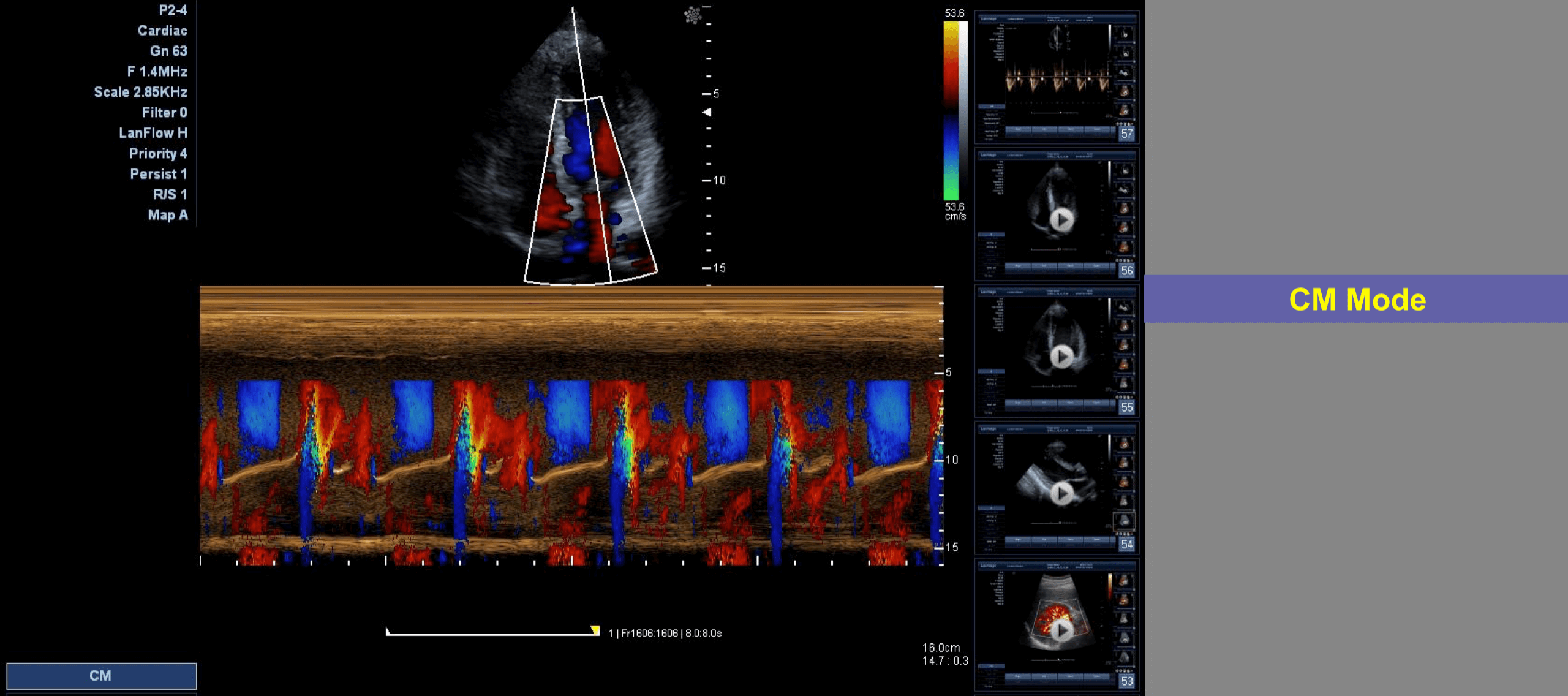

Color M Mode

Color m-mode imaging is a technique which uses pulsed Doppler interrogation along a single line of interrogation, similar to M-mode echocardiography. In color m-mode Doppler, the Doppler velocity shift is recorded and then color encoded and superimposed on the M-mode image. This process results in high temporal resolution data on the direction and timing of flow events. Color M-mode (CMM) echocardiography provides a spatiotemporal map of the velocities of the blood flow along the scan line from the mitral annulus to the LV apex.

Tissue Velocity Mapping

Tissue Velocity Mapping is also called Color-coded Tissue Doppler Imaging. It can create two dimentional color images that facilitate visual assessment of ventricular wall more significantly.

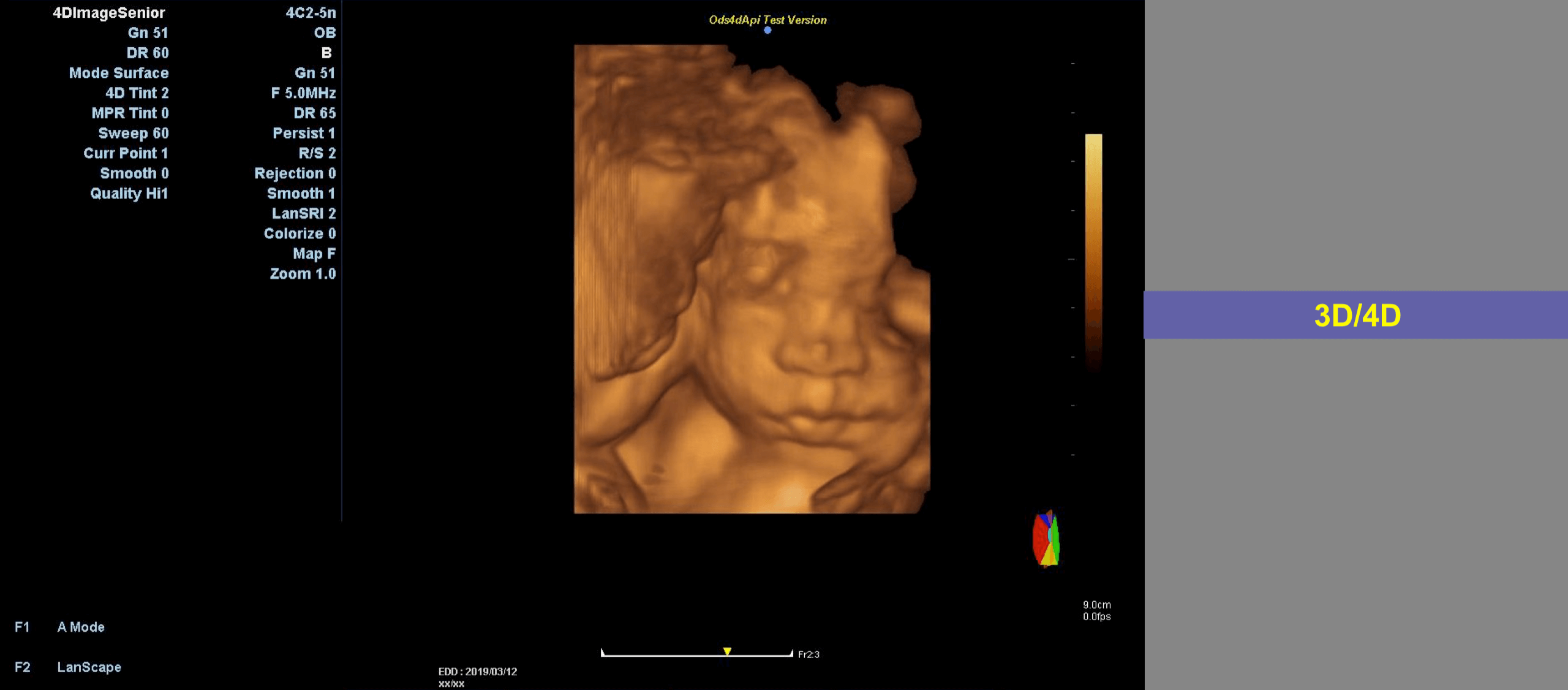

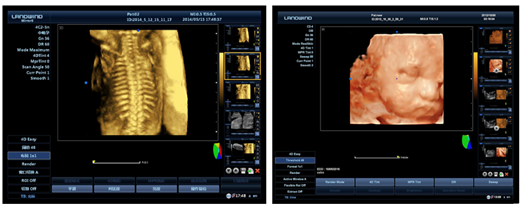

4D: LanSkin

Landwind Medical’s 4D package are capable of advanced 4D capabilities likeLanSkin andTomographic Ultrasound Imaging.

ϙ        LanSkin: Real Skin Imaging with light source, depth view

ϙ        Tomographic Ultrasound Imaging: function like CT Scanning

Auto Trace and Auto Calculation

By Auto trace and auto calculation, doctors can get necessary parameters automatically.

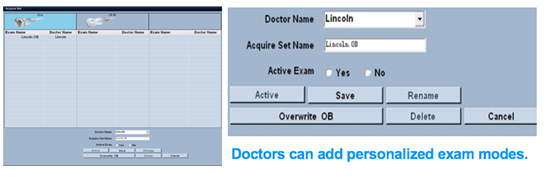

Powerful Acquire Set

Acquire set enables doctors to save his own preferred parameters to get his own styled image, save time. Doctors can add as much personalized exam modes as they want.




One-touch Workflow:

ϙ        one-touch Image storage, export, print

ϙ        One-touch export DVD USB

ϙ        One-touch Image Optimization

ϙ        one-touch spectrum Optimization
